Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
- Ensure that the steering wheel is set in a straight ahead position and centered.

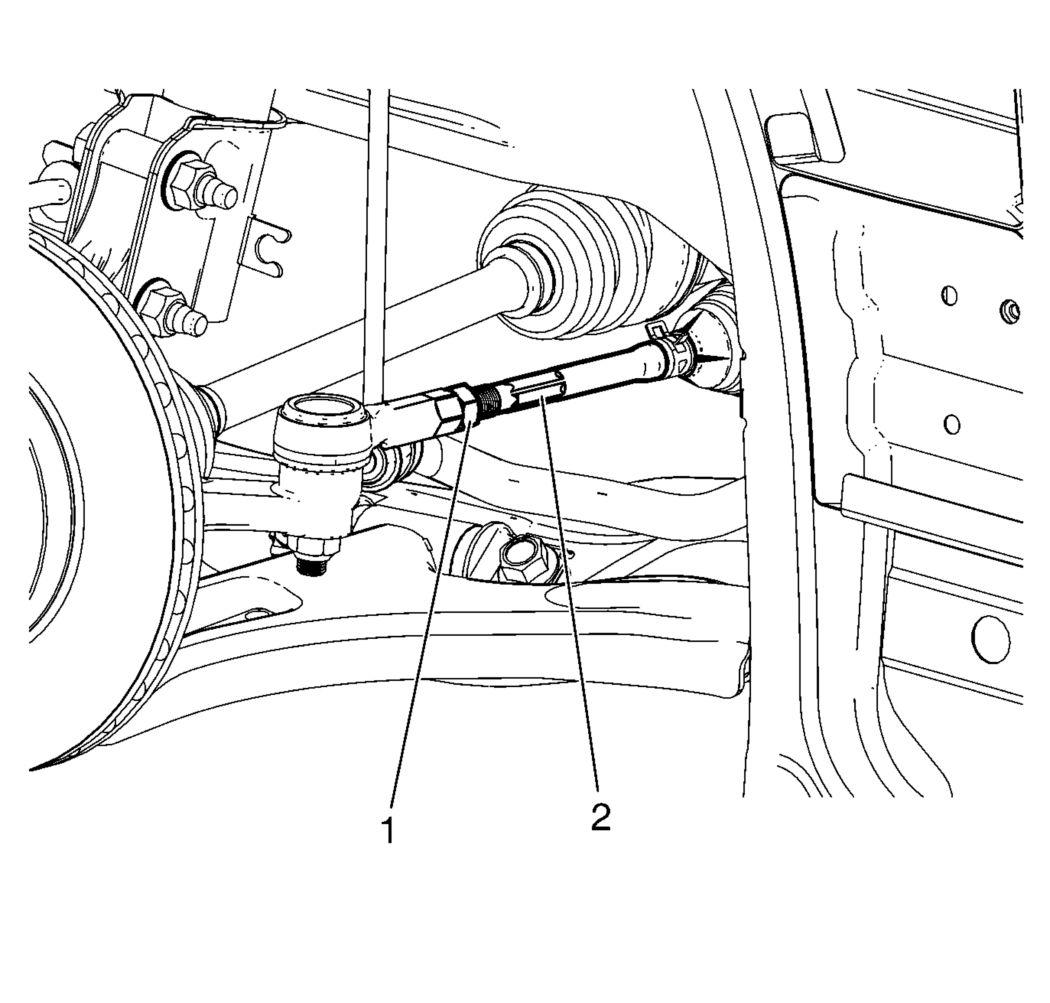

- Loosen the tie rod jam nut (1).
- Adjust the toe to specification by turning the adjuster (2). Refer to Wheel Alignment Specifications .
- Install the tie rod jam nut (1) and tighten to 75 N.m (55 lb ft).
CAUTION:
Refer to Fastener Caution .
