Front View Camera Replacement

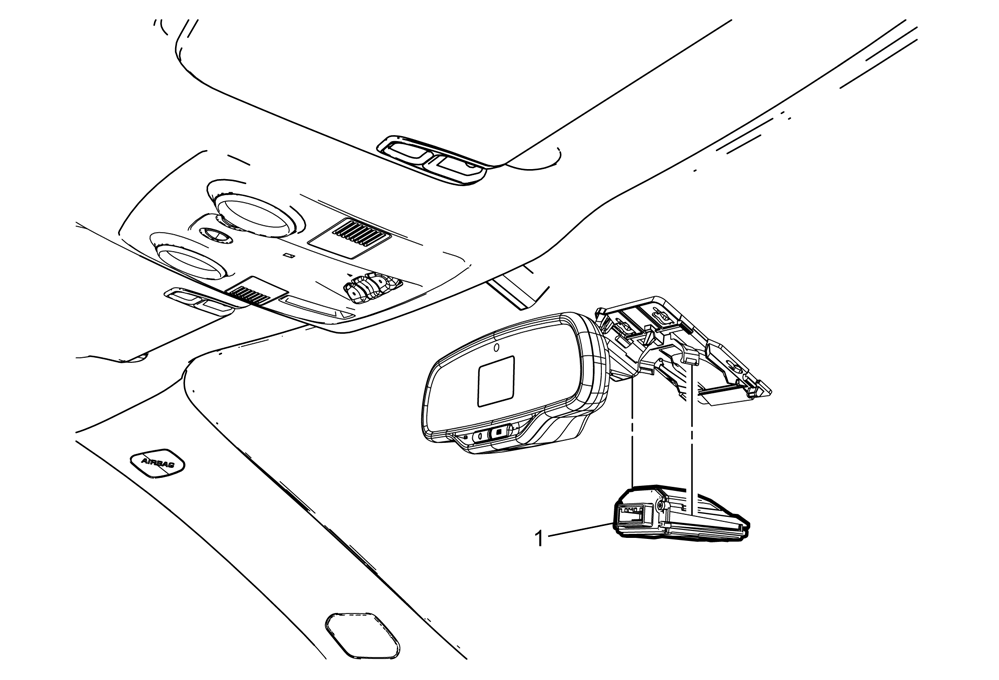

Fig 1: Identifying Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Replacement .
1	Front View Camera Procedure Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward. Disconnect the electrical connector. Program and calibrate the front view camera. For programming and set up, refer to Front View Camera Module Calibration .

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Replacement .

Front View Camera

Procedure

Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward.
Disconnect the electrical connector.
Program and calibrate the front view camera. For programming and set up, refer to Front View Camera Module Calibration .
