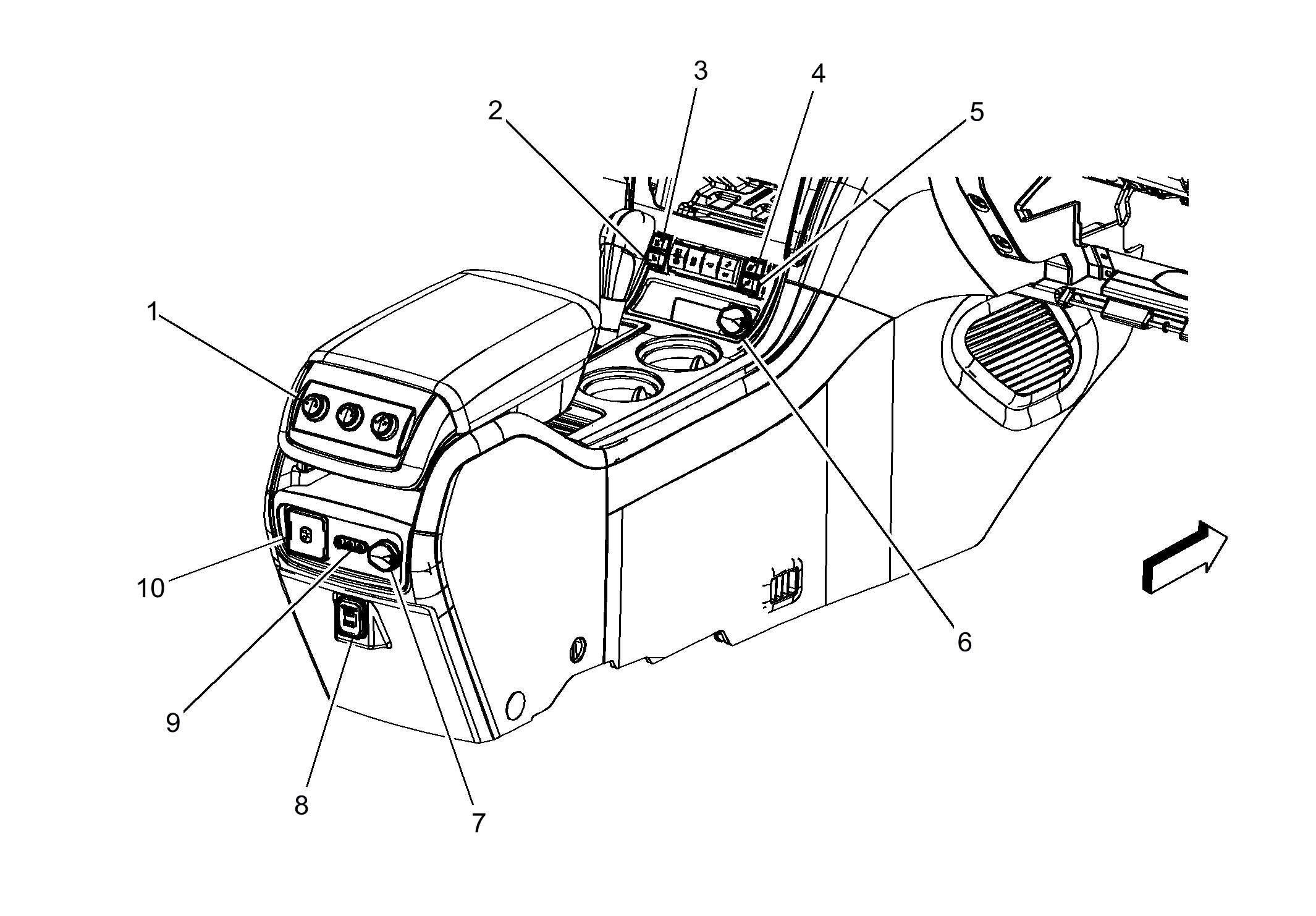

Console Components (X88)
Console Components (X88)
| Items |
|---|
| 1: A21 Radio/HVAC Controls - Auxiliary A21 Radio/HVAC Control - Auxiliary X1 (ULD)A21 Radio/HVAC Control - Auxiliary X2 (ULD) |
| 2: S32D Seat Heating Switch - Driver ((KA1 or KB6 or SPO Accessory)) S32D Seat Heating Switch - Driver (KA1) |
| 3: S31D Seat Heating and Cooling Switch - Driver ((KB6)) S31D Seat Heating and Cooling Switch - Driver (KB6) |
| 5: S32P Seat Heating Switch - Passenger ((KA1 or SPO Accessory)) S32P Seat Heating Switch - Passenger (KA1) |
| 6: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 7: X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console |
| 8: X92 USB Receptable |
| 9: X82 Audio/Video Input Adapter ((U42)) X82 Audio/Video Input Adapter (U42) |
| 10: X81 Accessory Power Receptacle - 110V AC ((KV1)) X81 Accessory Power Receptacle - 110V AC X1 (KV1)X81 Accessory Power Receptacle - 110V AC X2 (KV1) |
