Subsystem References (2 of 3)

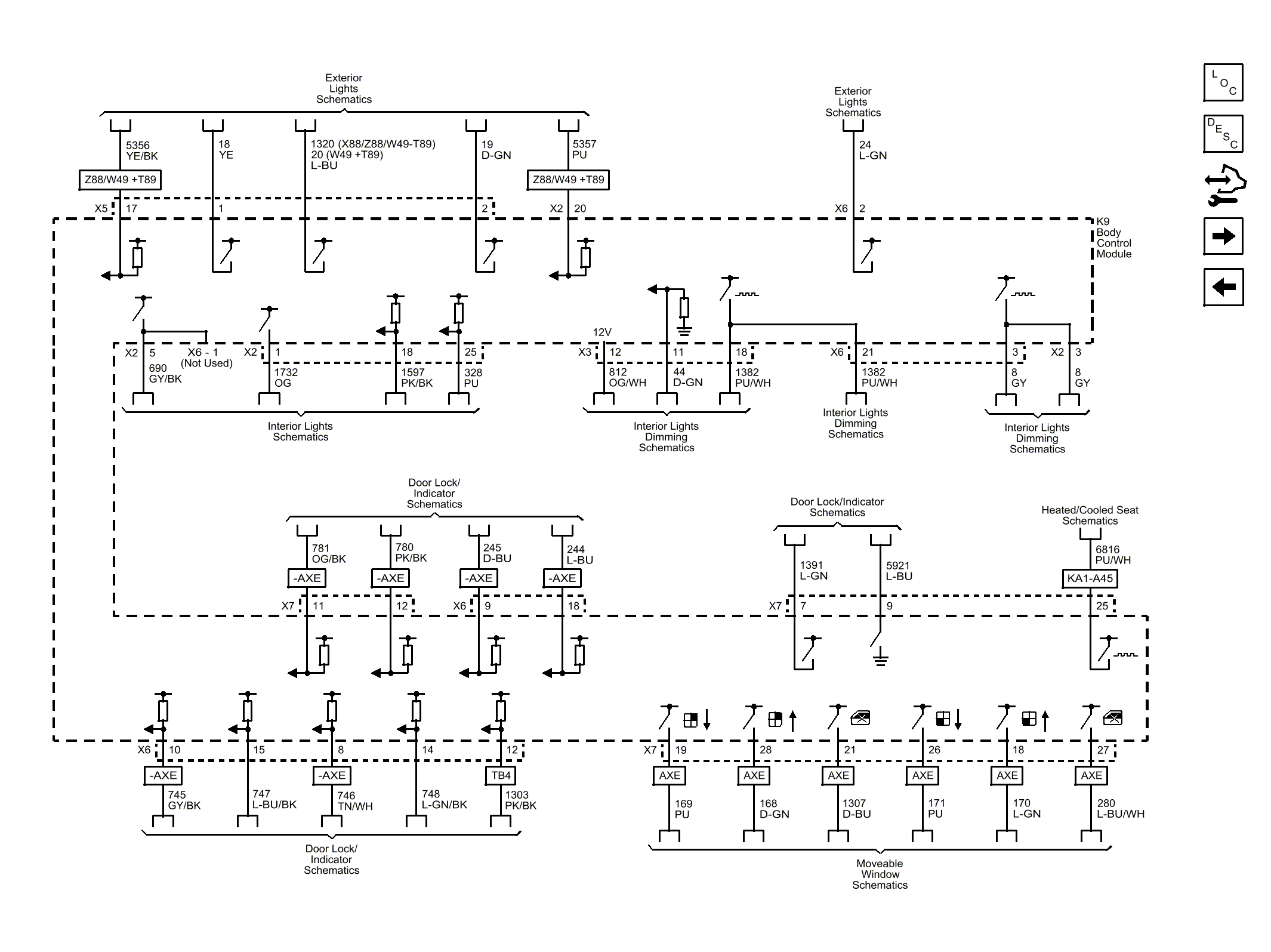

Fig 1: Subsystem References (2 Of 3) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
