Communication Enable and Linear Interconnect Network (LIN)

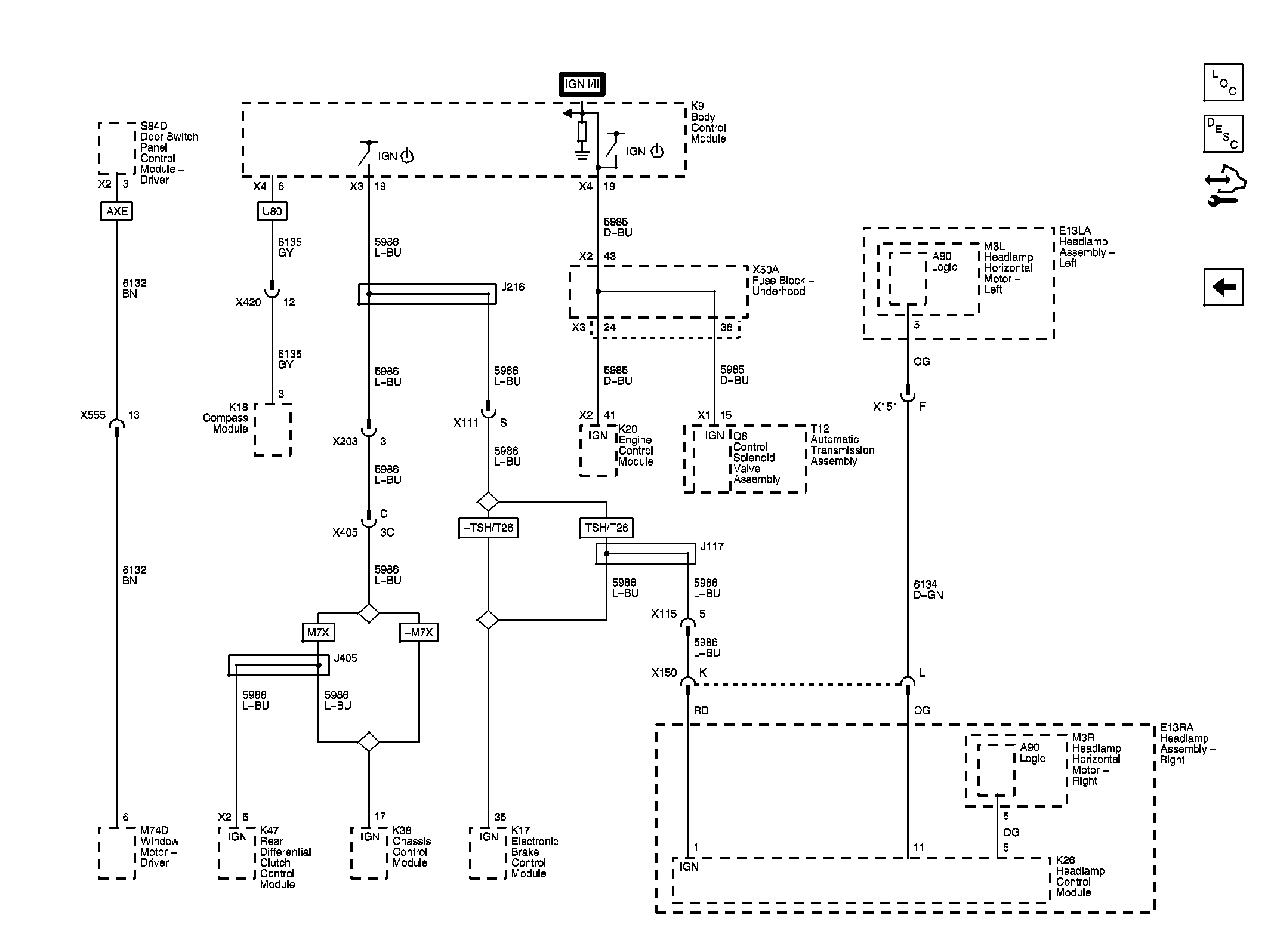

Fig 1: Communication Enable and Linear Interconnect Network (LIN) Wiring Schematics
GM3329343Courtesy of GENERAL MOTORS COMPANY
