High Speed GMLAN Bus (1 of 2)

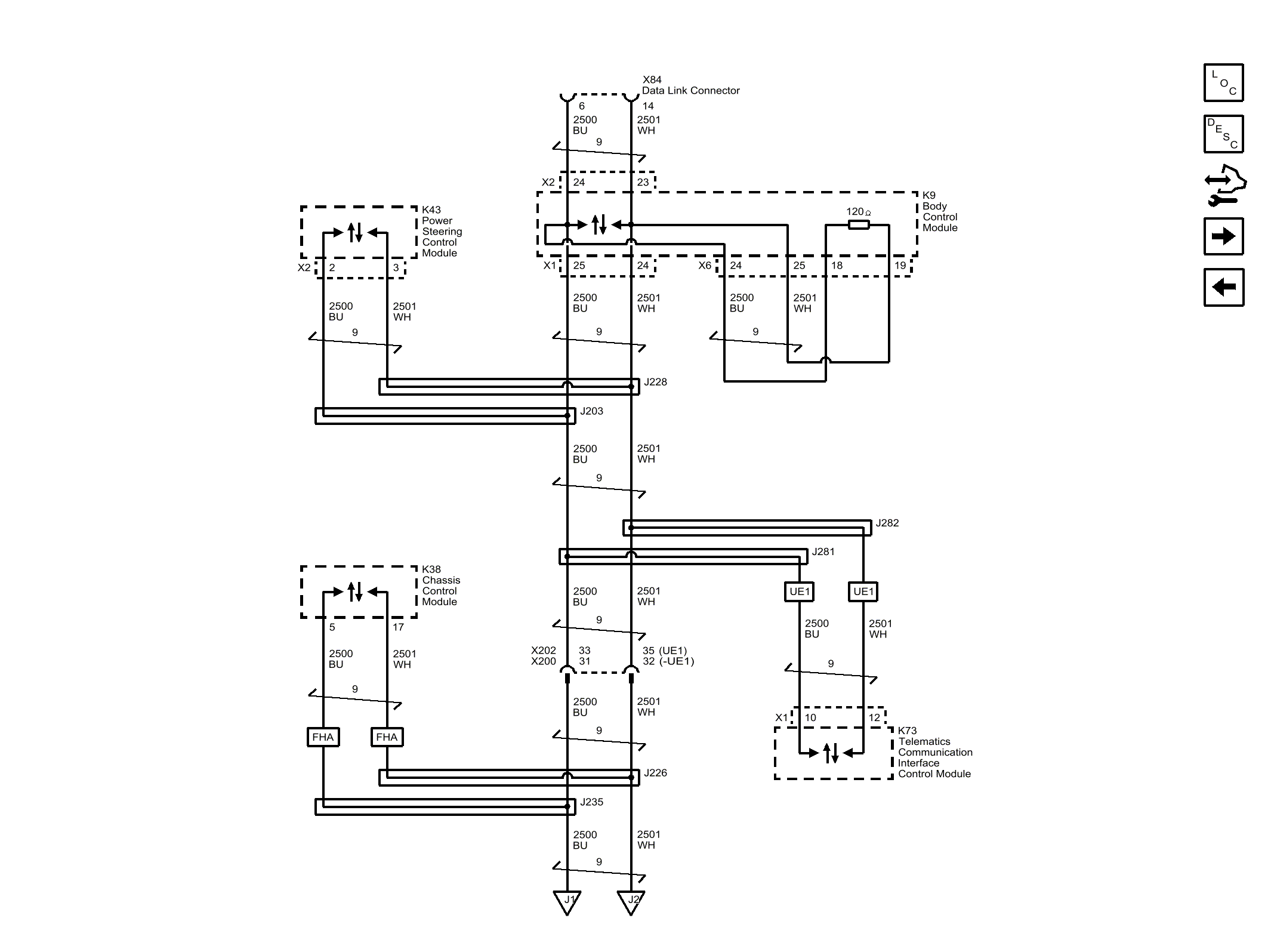

Fig 1: High Speed GMLAN Bus (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
