Keyless Entry System

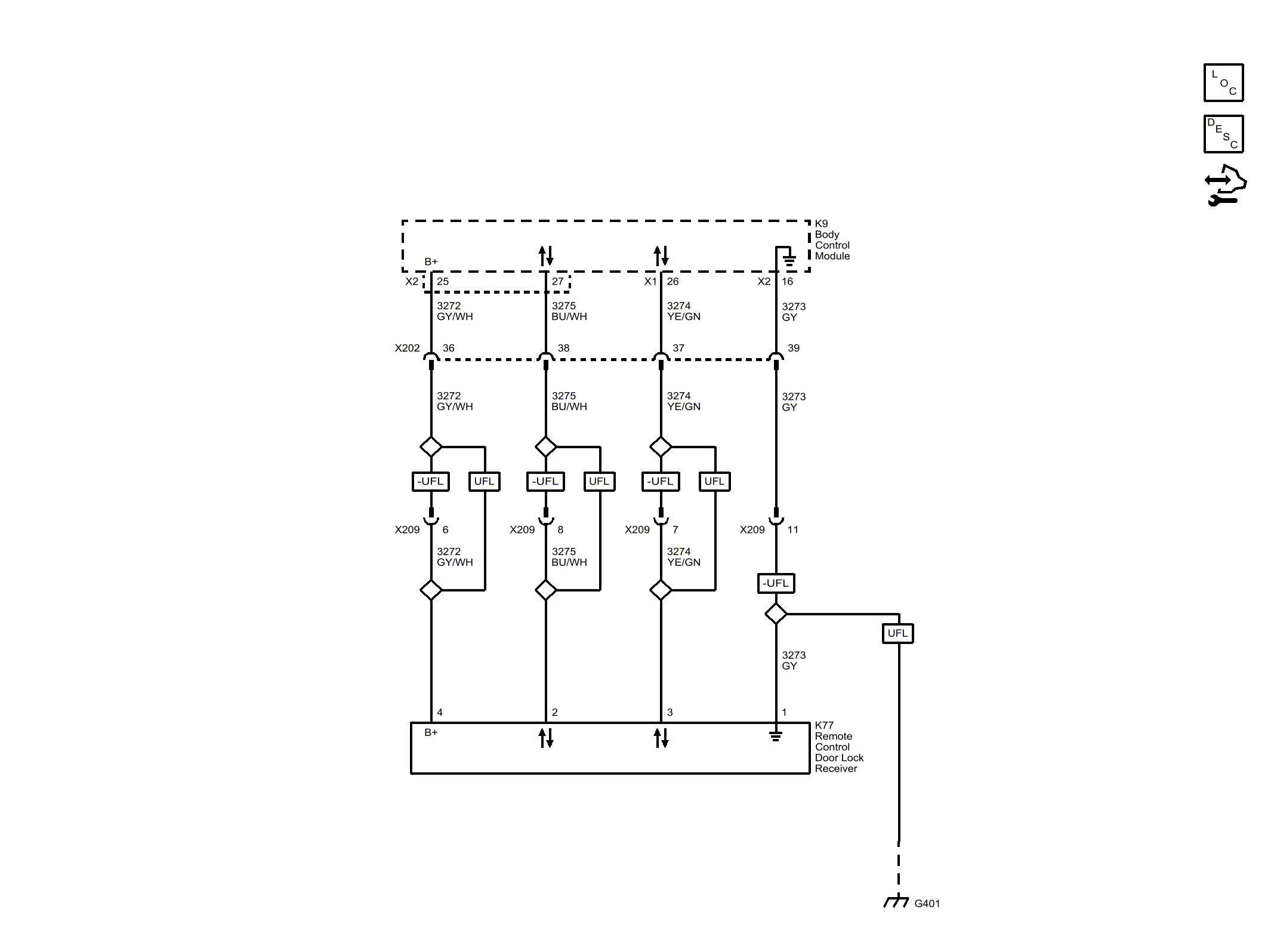

Fig 1: Keyless Entry System (Encore)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
