Shift Lock Control Wiring Schematics (Encore)
>>
Shift Lock Control System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Shift Lock Control System

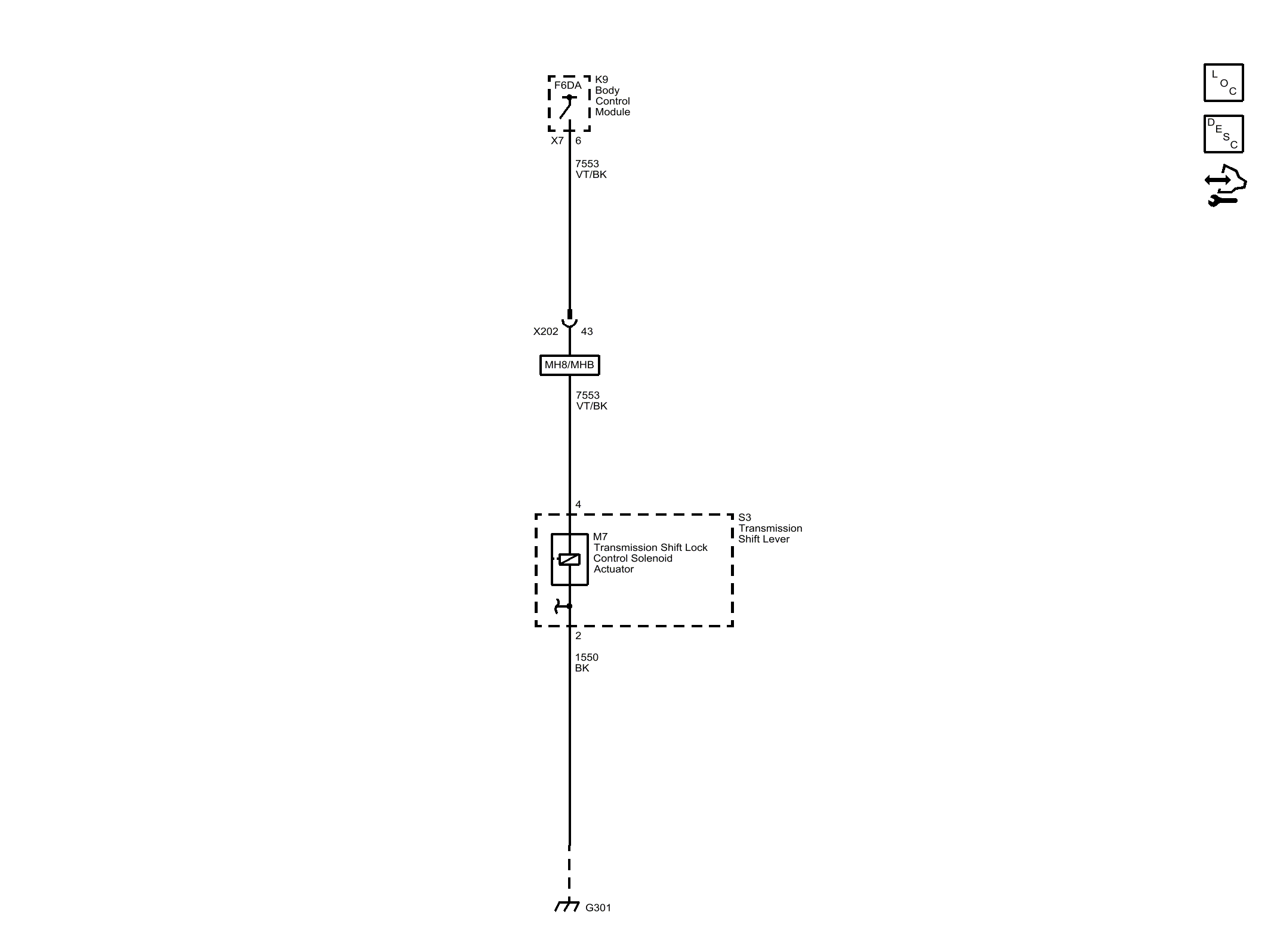

Fig 1: Shift Lock Control System
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
