Front and Rear Object Alarm Module Replacement

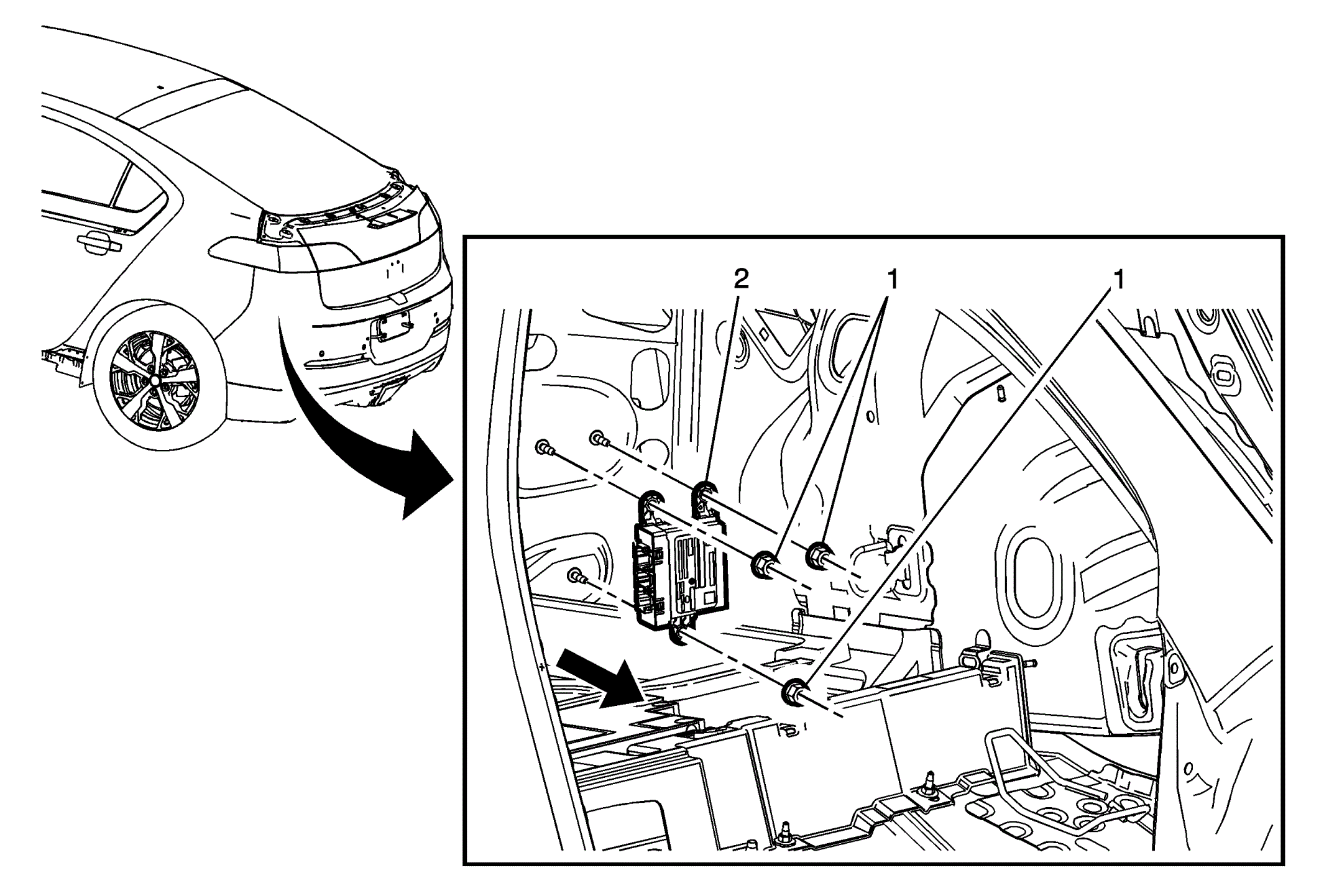

Fig 1: Front and Rear Object Alarm Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement .
1	Front And Rear Object Alarm Module Nuts (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Front And Rear Object Alarm Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the left quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement .

Front And Rear Object Alarm Module Nuts (Qty: 3)

CAUTION: Refer to Fastener Caution .

Front And Rear Object Alarm Module

Procedure
