Rearview Camera Image Display Module Replacement

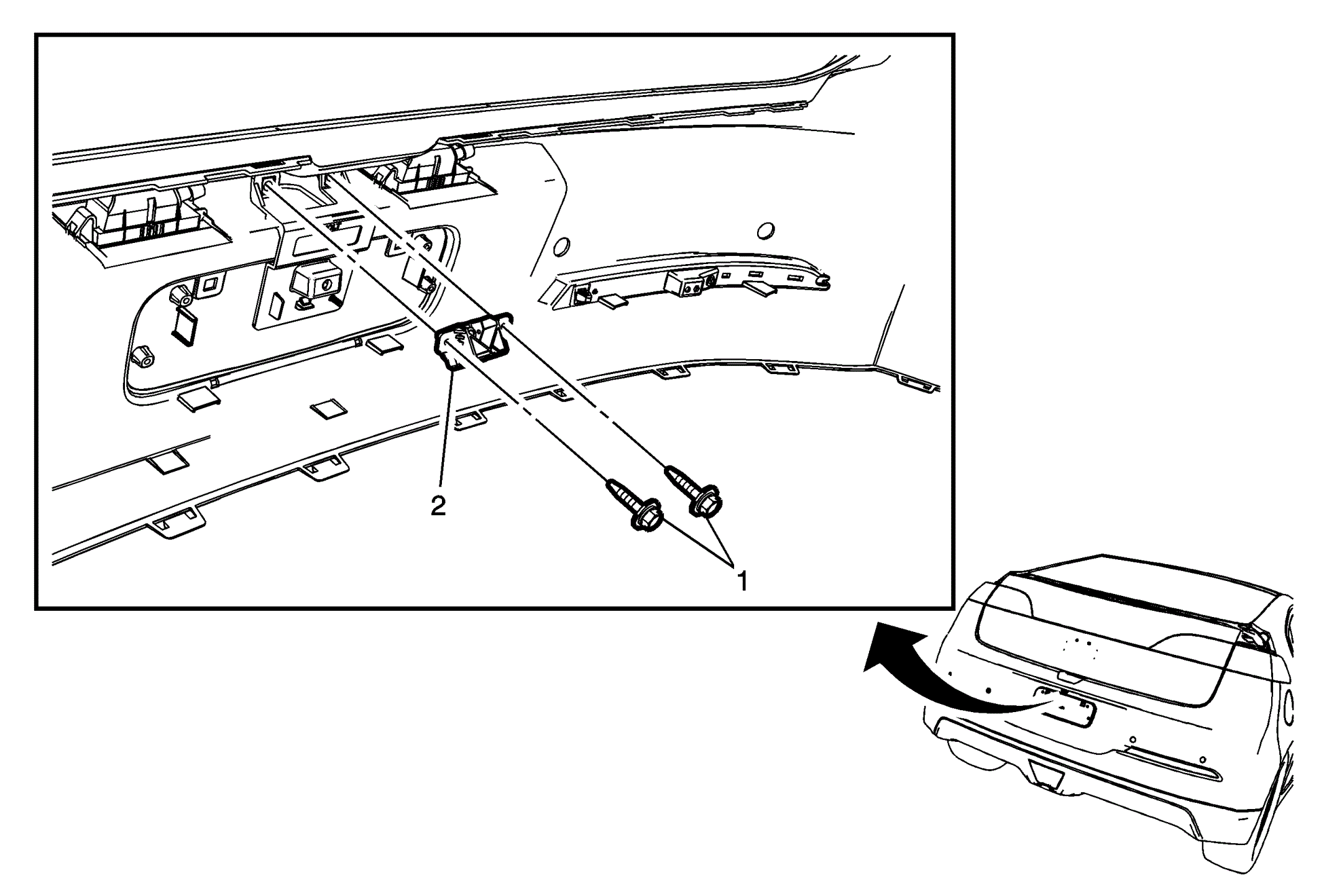

Fig 1: Rearview Camera Image Display Module

Courtesy of GENERAL MOTORS COMPANY

Rearview Camera Image Display Module Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Removal and Installation .
1	Rearview Camera Image Display Module Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Rearview Camera Image Display Module Procedure  Disconnect the electrical connector.
