Remote Control Door Lock Receiver Replacement (With UVF)

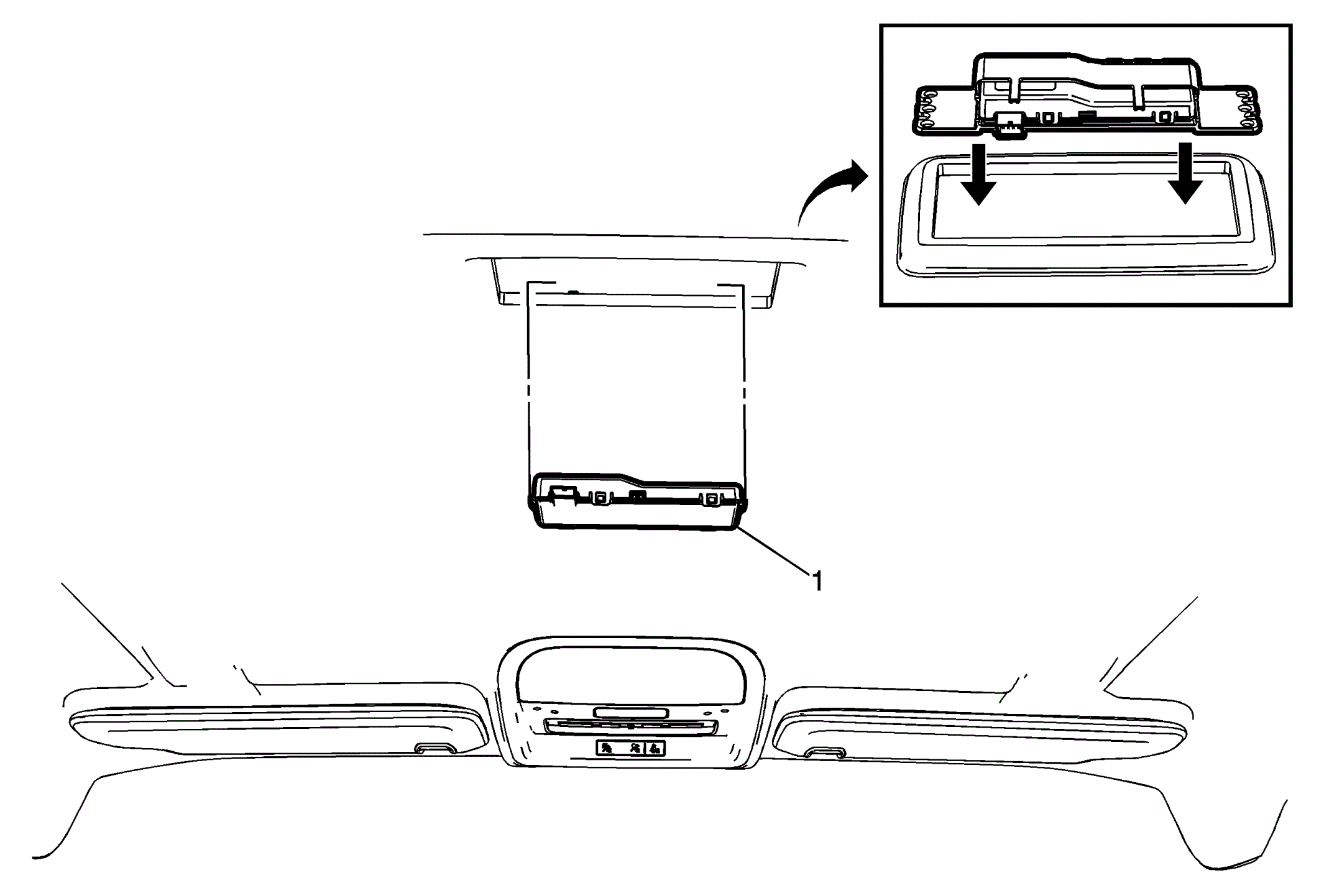

Fig 1: Remote Control Door Lock Receiver (With UVF)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the reading lamp. Refer to Reading Lamp Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Slide the receiver out of the bracket and through the lamp opening in the headliner. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the reading lamp. Refer to Reading Lamp Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Slide the receiver out of the bracket and through the lamp opening in the headliner.
For programming and set up, refer to Control Module References .
