Installation Procedure

  1. Align the locating pin on the brake control brake pedal position sensor (1) to the hole on the brake pedal assembly bracket.

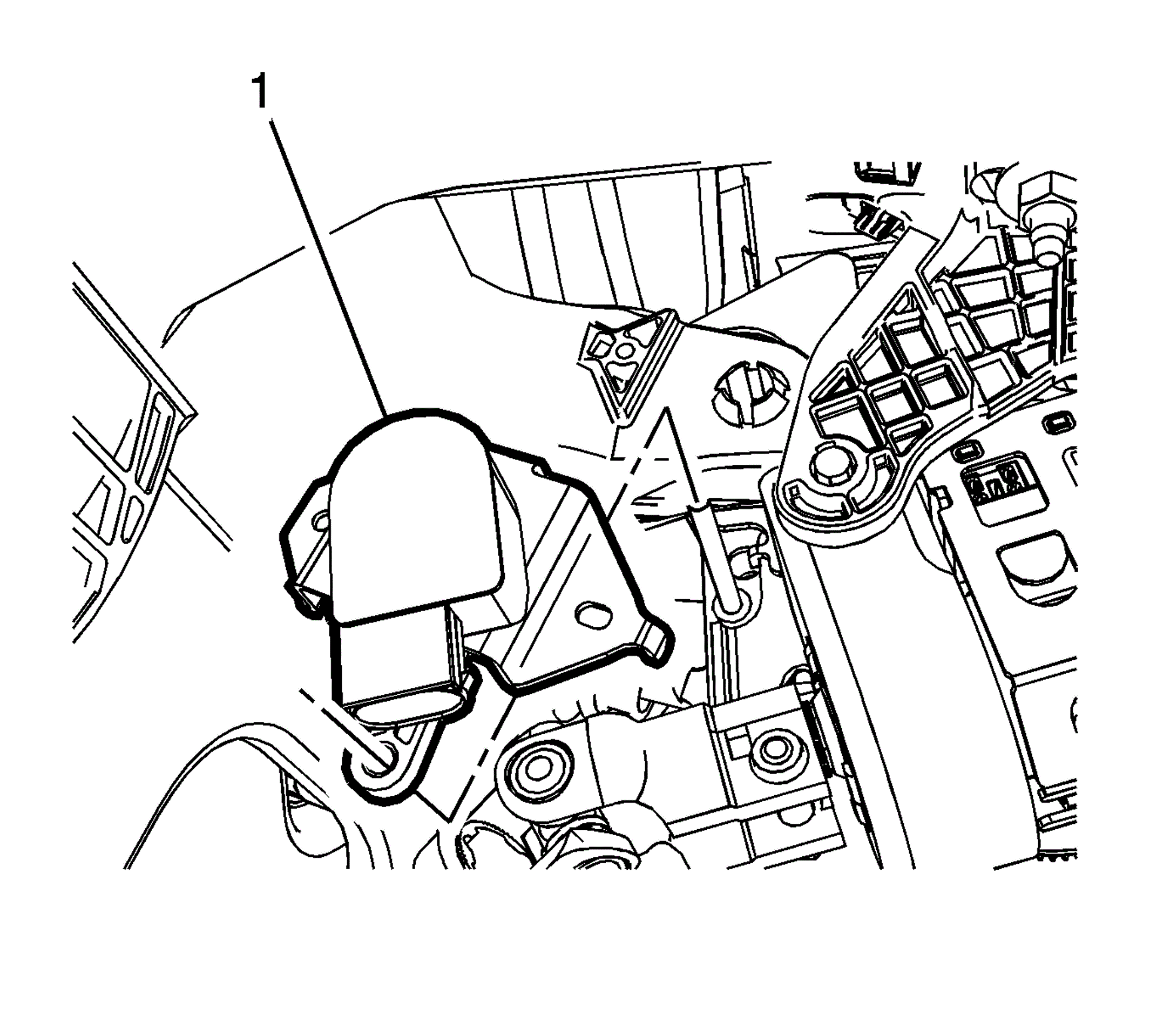

    Fig 1: Brake Control Brake Pedal Position Sensor
    GM2634921Courtesy of GENERAL MOTORS COMPANY
  2. Ensure the brake control brake pedal position sensor fork is properly located on the brake pedal pin.
  3. Install the brake control brake pedal position sensor bolt (1) and tighten to 9 N.m (80 lb in).

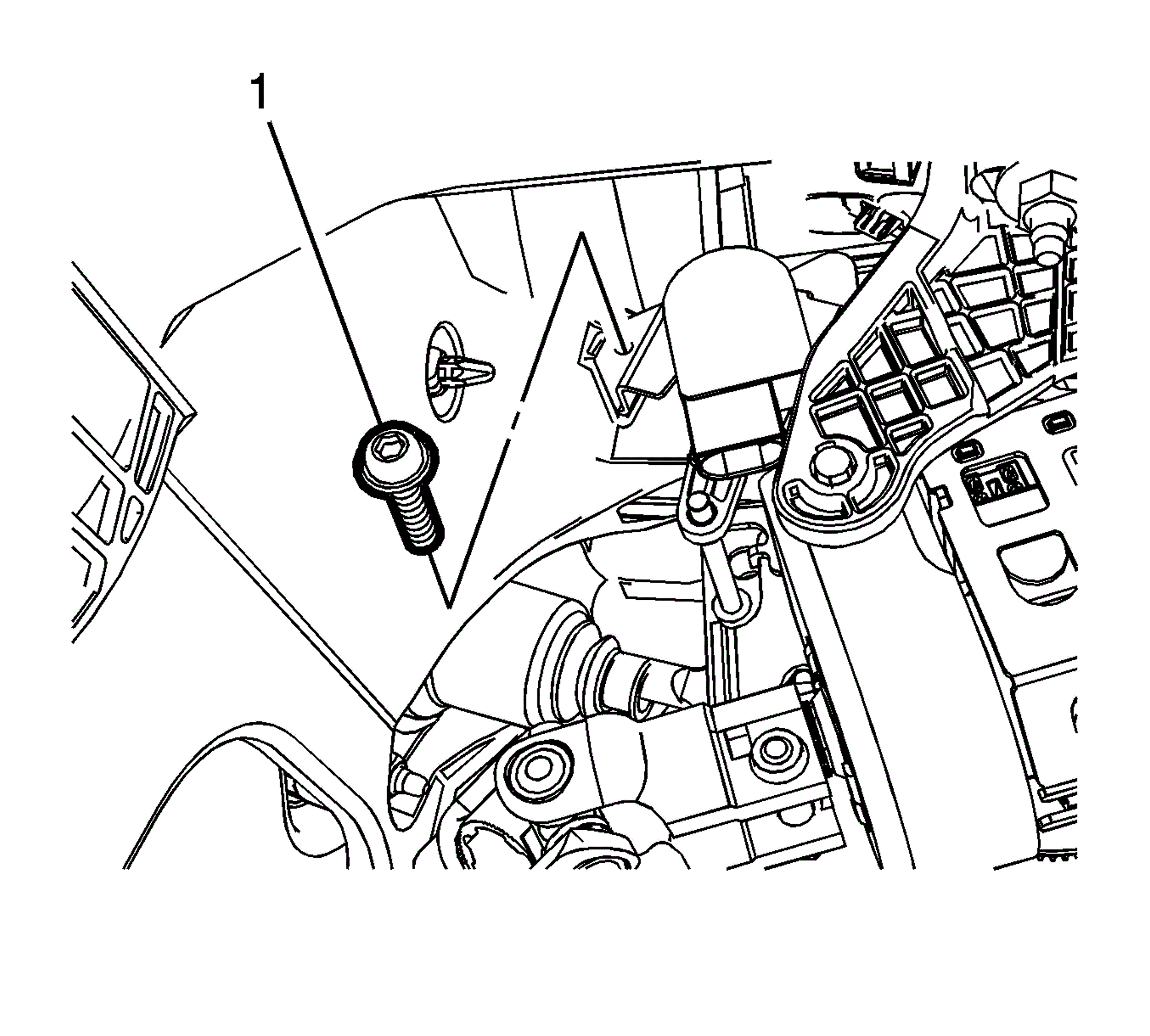

    Fig 2: Brake Control Brake Pedal Position Sensor Bolt
    GM2634918Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  4. Connect the brake control brake pedal position sensor electrical connector.
  5. Perform the Brake Control Brake Pedal Position Sensor Calibration .
