Installation Procedure

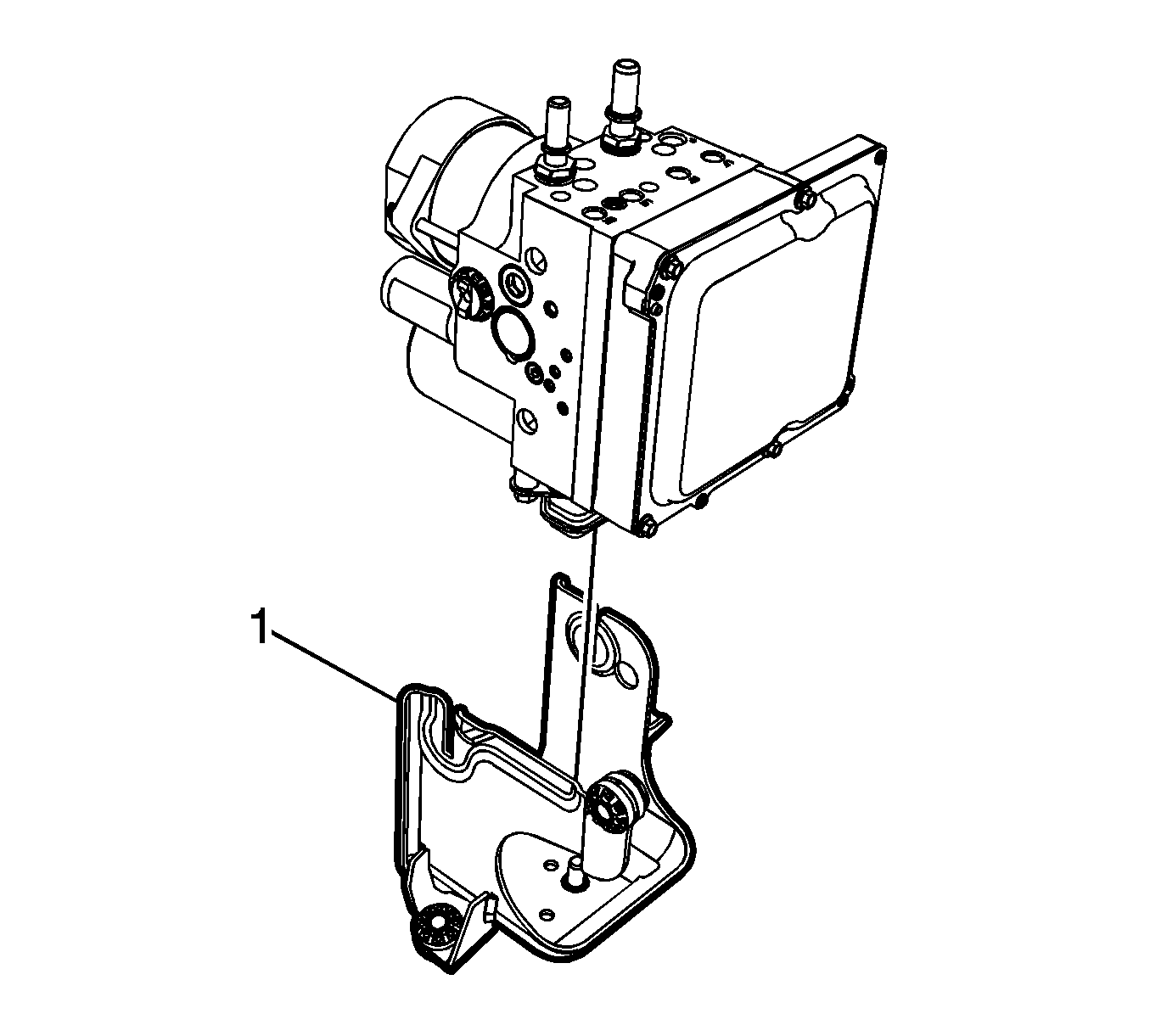

Install the bracket (1) to the BPMV/EBCM assembly.

Fig 1: BPMV/EBCM Assembly And Bracket
Courtesy of GENERAL MOTORS COMPANY

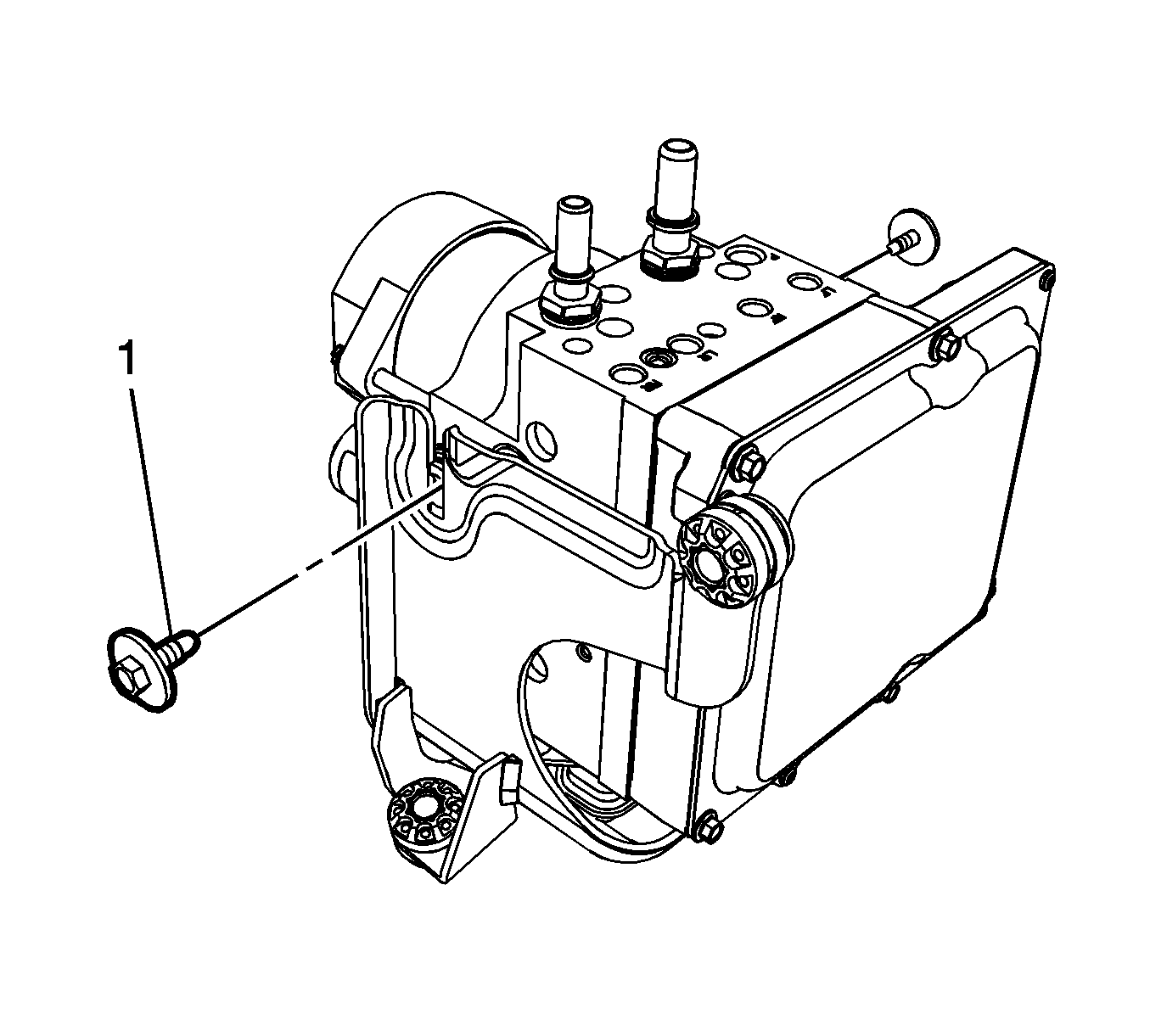

Install the 2 BPMV bolts (1) and tighten to 8 N.m (71 lb in).

Fig 2: BPMV Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Install the BPMV/EBCM assembly. Refer to Electronic Brake Control Module Replacement .
