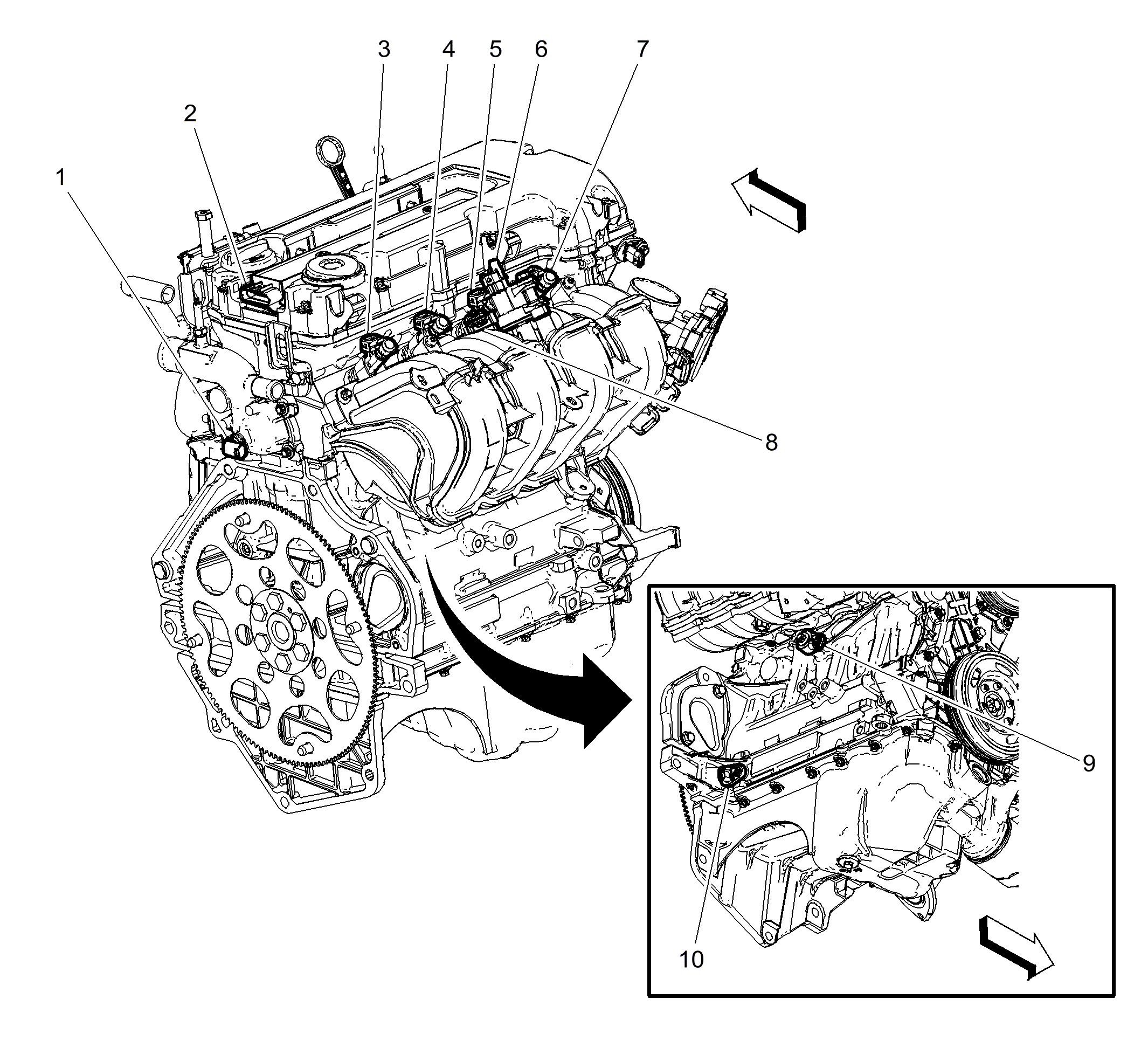

Left Rear of Engine Components
Left Rear of Engine Components
| Items |
|---|
| 1: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 2: K35 Ignition Coil Module K35 Ignition Coil Module |
| 3: Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 4: Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 5: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emissions Purge Solenoid Valve |
| 6: Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 7: Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 8: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 9: B68 Knock Sensor B68 Knock Sensor |
| 10: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
