Theft Deterrent Module Replacement

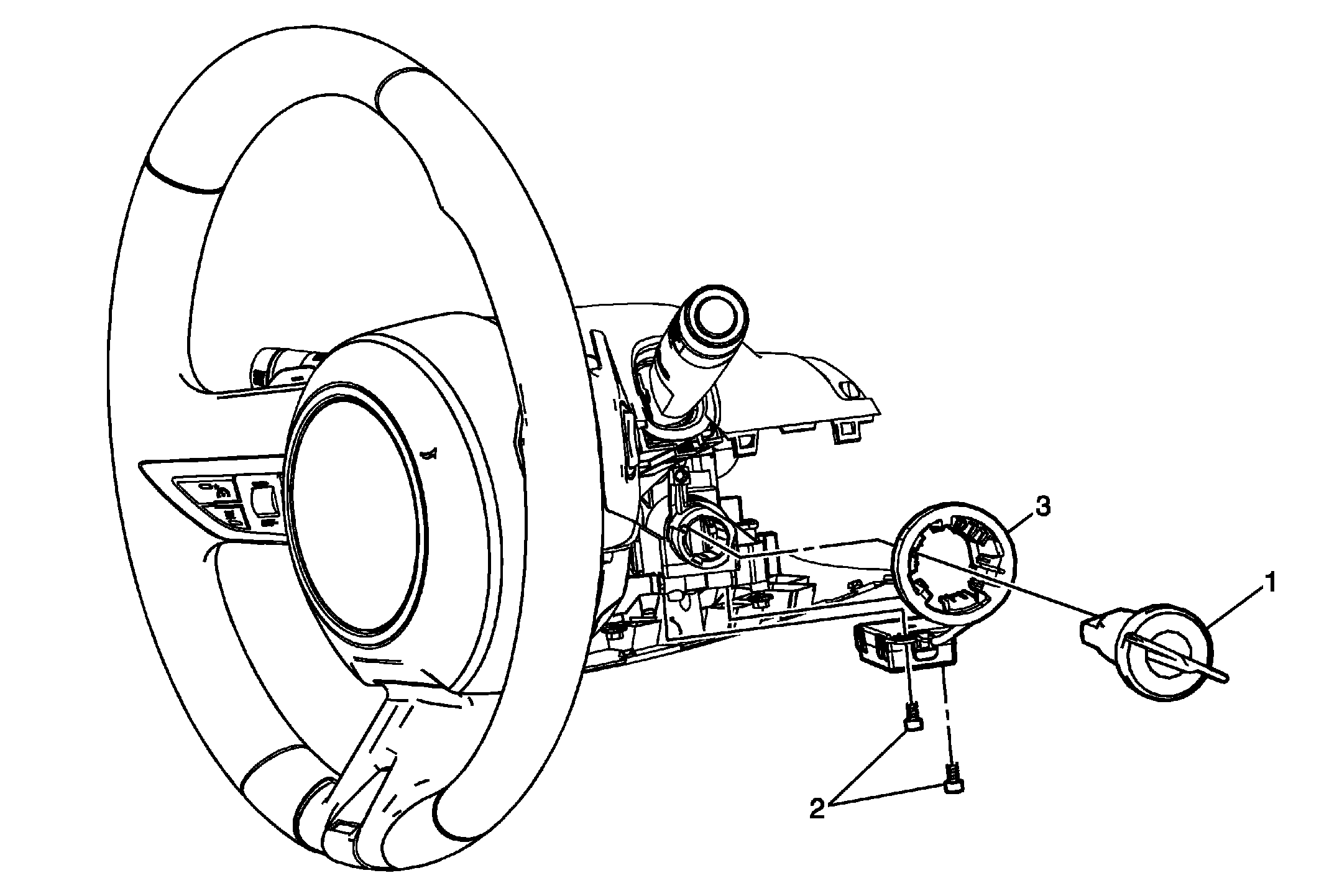

Fig 1: Theft Deterrent Module, Bolts And Ignition Lock Cylinder

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column shrouds. Refer to Steering Column Shroud Replacement .
1	Ignition Lock Cylinder Refer to Ignition Lock Cylinder Replacement
2	Theft Deterrent Module Bolt/Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Theft Deterrent Module Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.
