Parking Assist Control Module Replacement

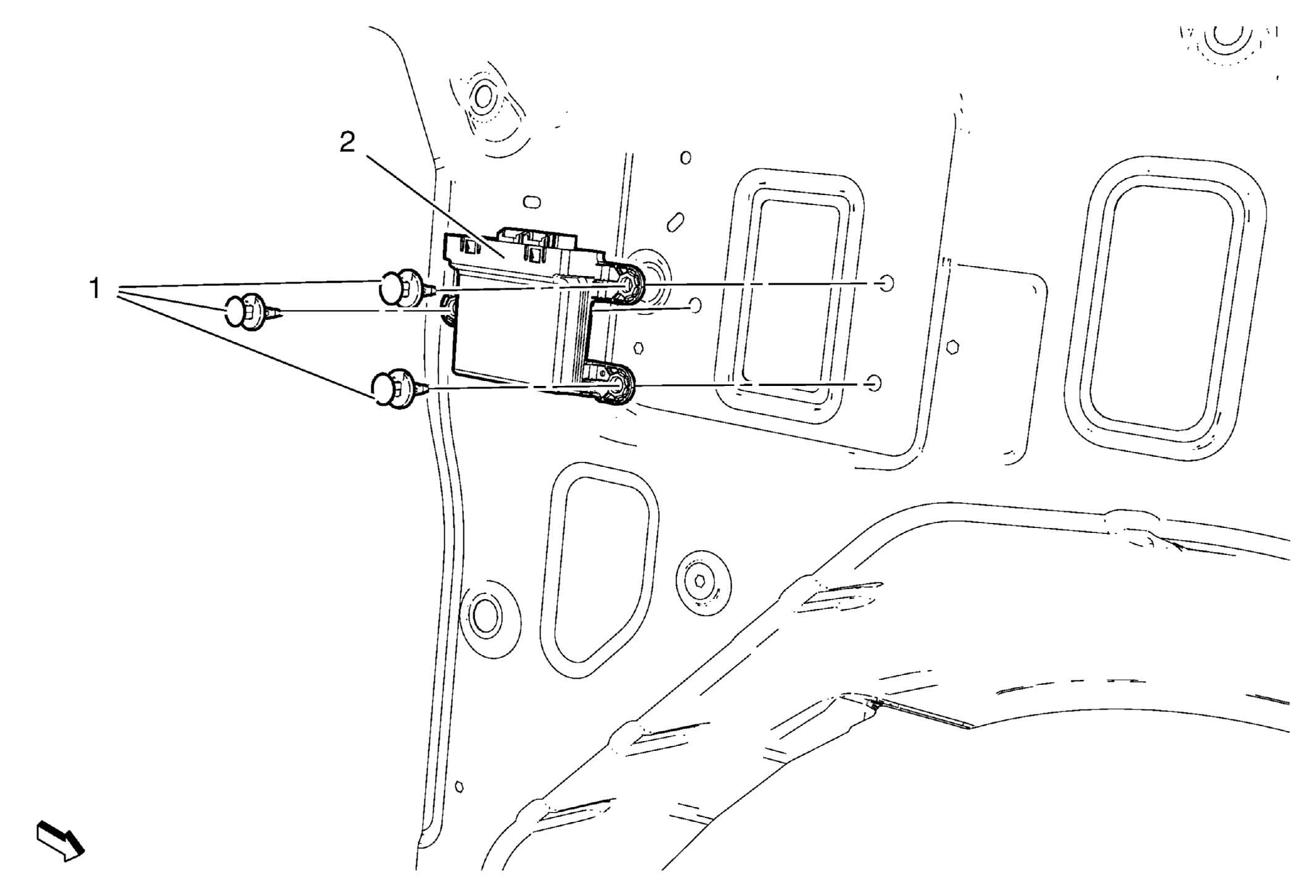

Fig 1: Rear Object Alarm Module And Clips

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Left Side .
1	Rear Object Alarm Module Clip (Qty: 3)
2	Rear Object Alarm Module
