Powertrain Expansion Bus (LUZ)

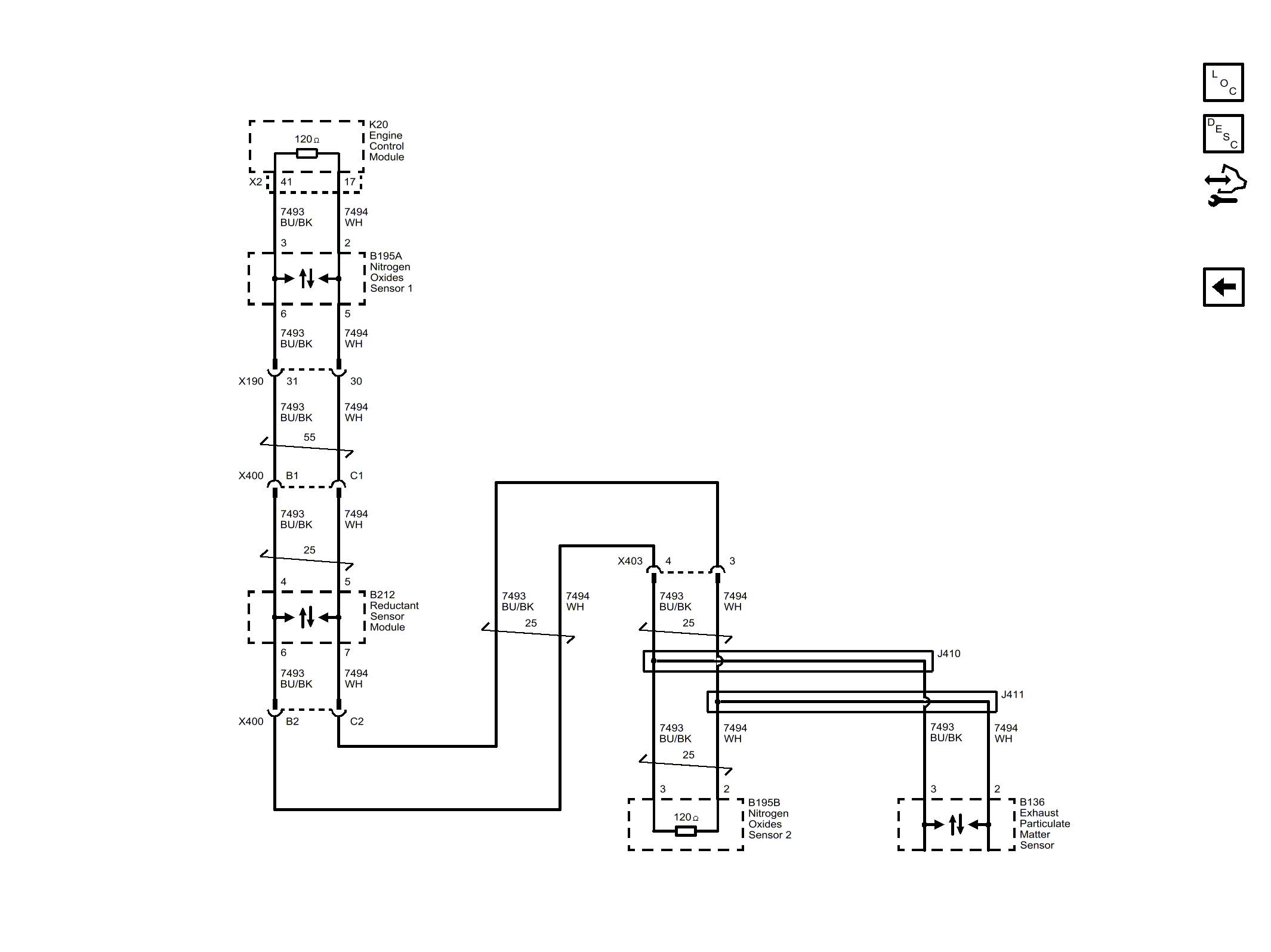

Fig 1: Powertrain Expansion Bus (LUZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
