Shift Lock Control Wiring Schematics: MH8

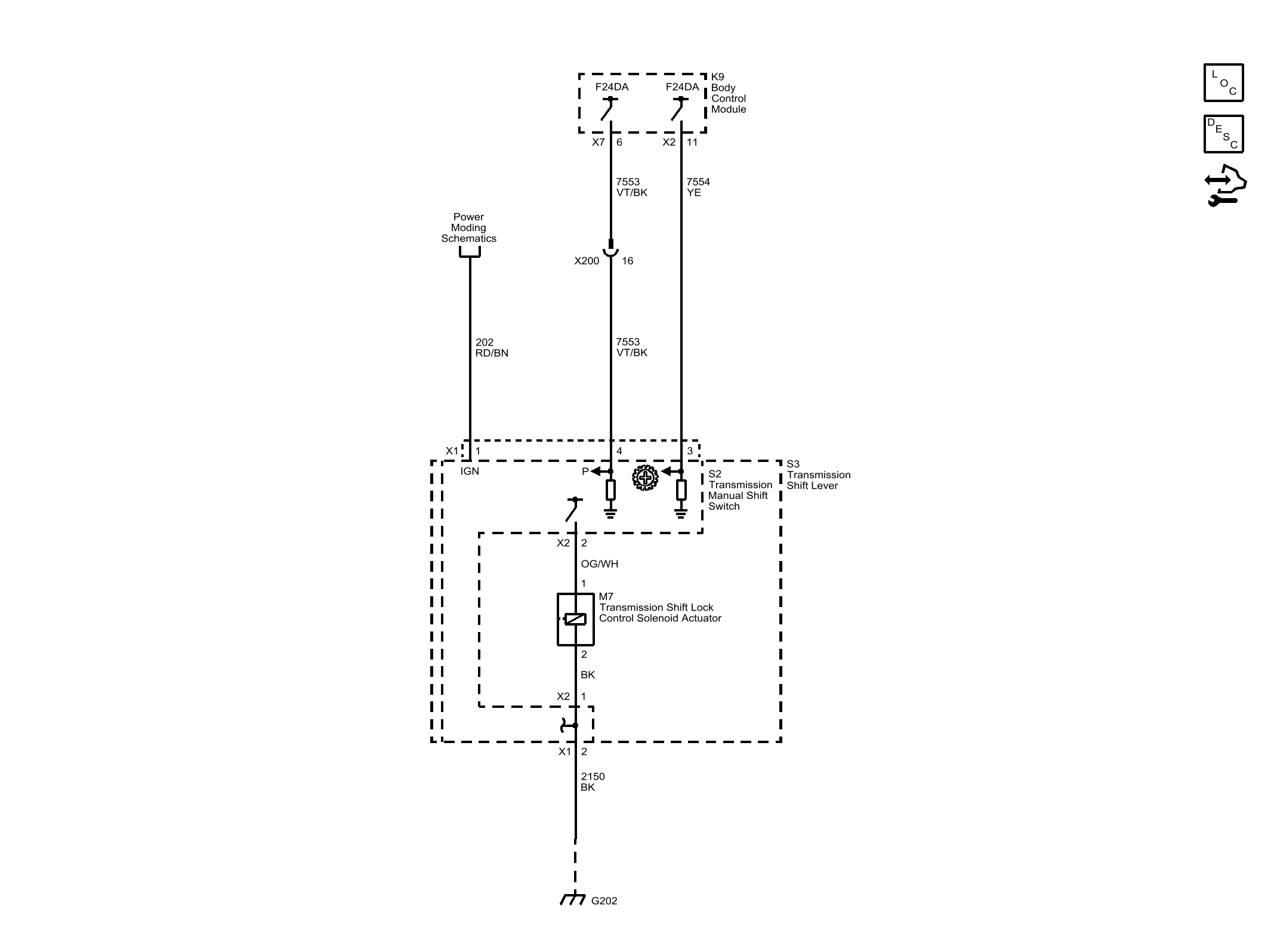

Fig 1: MH8
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
