Front Side Door Outside Handle Rod Replacement

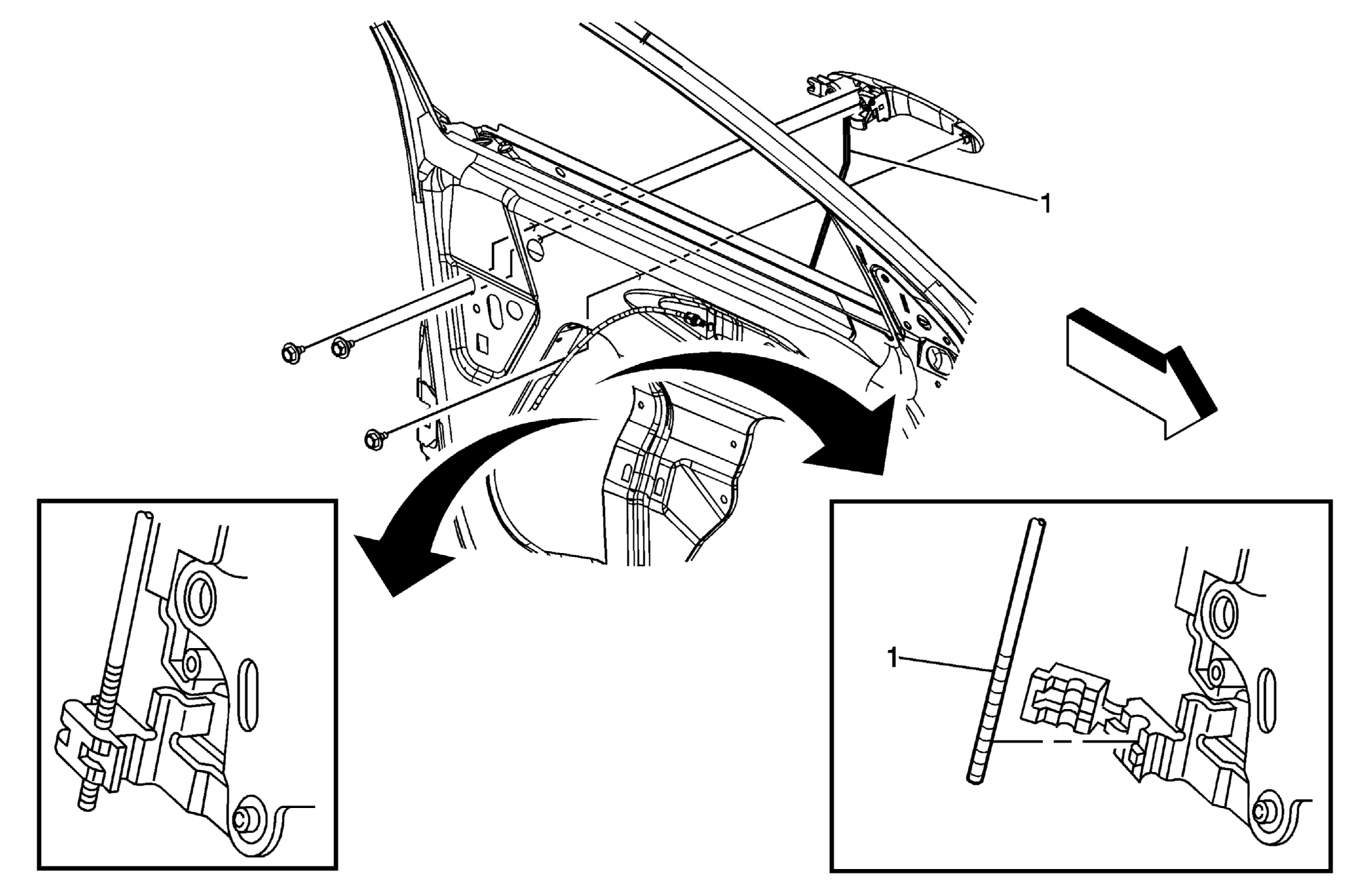

Fig 1: Front Outside Door Handle Rod
GM1646564Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the outside door handle. Refer to Front Side Door Outside Handle Replacement (Impala) .
1 Outside Door Handle Rod

Procedure

  1. Remove the water deflector as needed. Refer to Front Side Door Water Deflector Replacement (Impala) .
  2. Use a flat-bladed tool to release the threaded rod from the clip.
  3. Position the rod in the clip in order to eliminate any free play in the outside door handle.
  4. Inspect the door lock system for proper operation before installing the trim panel.
