Impala Limited LS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Schematic Wiring Diagrams
>>
Release Systems Wiring Schematics
>>
Release Systems
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Release Systems

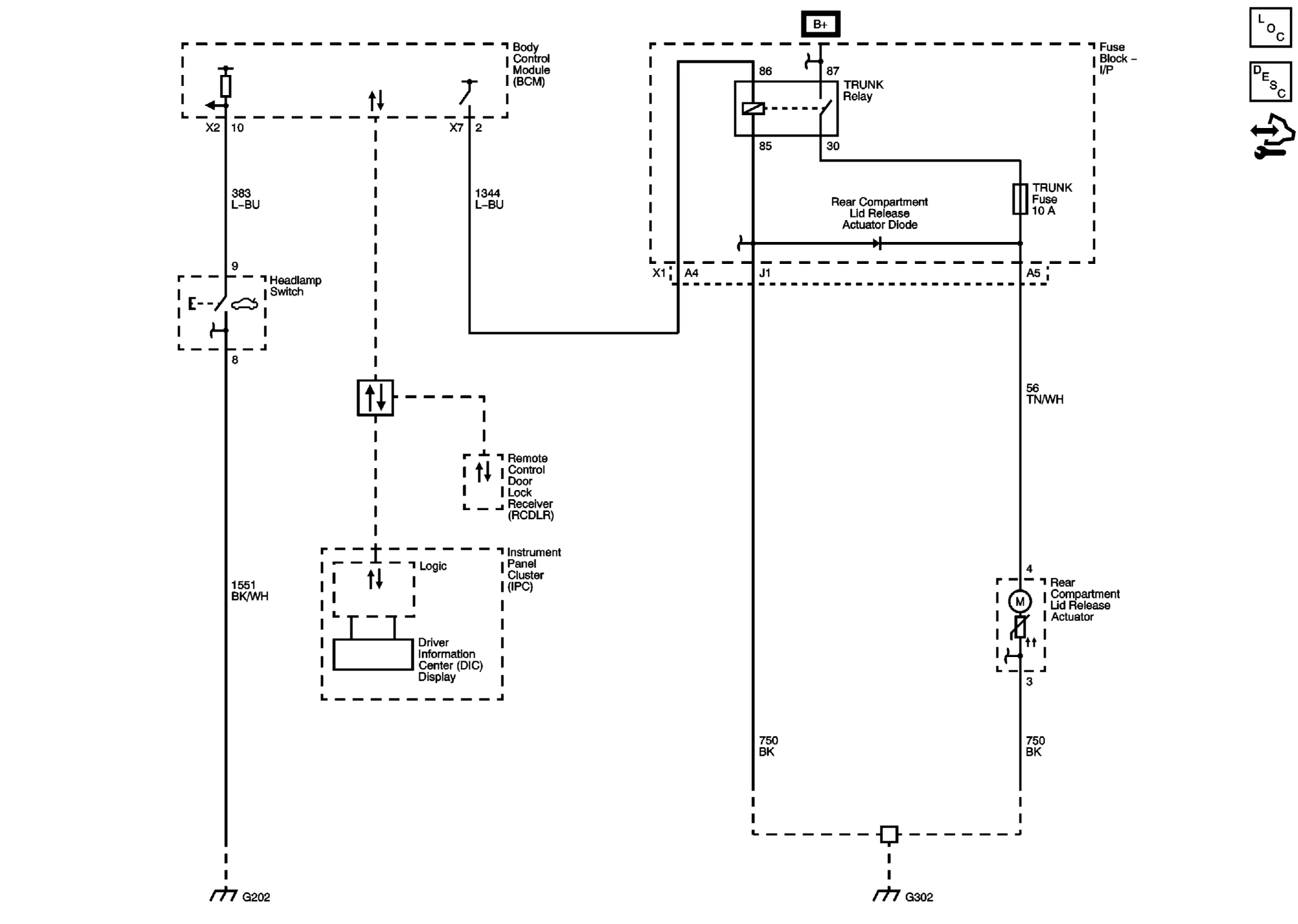

Fig 1: Release Systems Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
