Engine Block- Top/Bottom Views

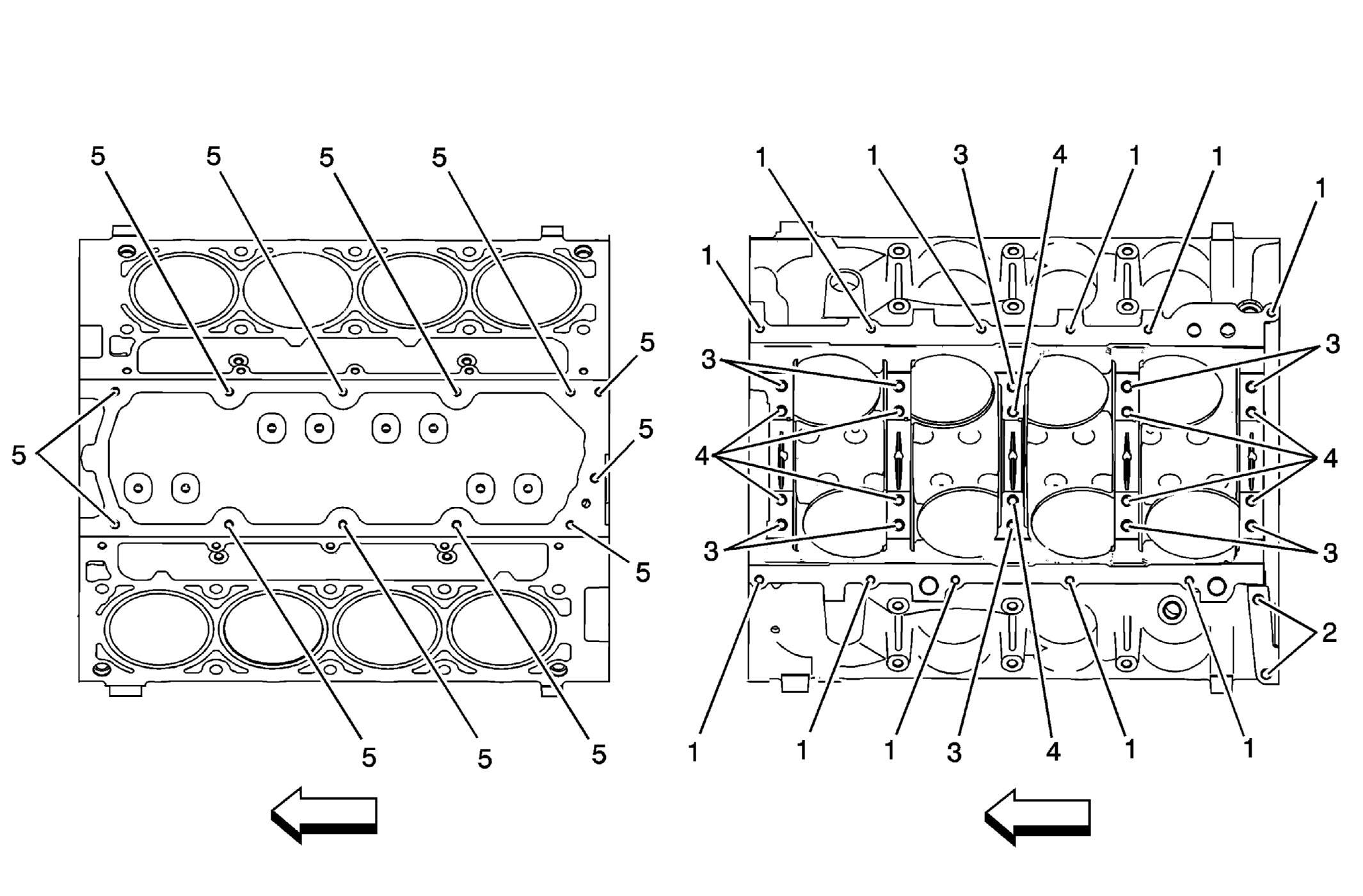

Fig 1: Engine Block - Top/Bottom Views

Courtesy of GENERAL MOTORS COMPANY

Hole	Thread Size	Insert	Drill	Counter Bore Tool	Tap	Driver	Drill Depth- Maximum mm (in)	Tap Depth- Maximum mm (in)
J 42385-
1	M8 x 1.25	210	206	207	208	209	22.5 (0.885)	17.5 (0.688)
2	M10 x 1.5	215	211	212	213	214	42.5 (1.67)	37.0 (1.45)
3	M10 x 2.0	104	101	N/A	102	103	31.0 (1.22)	25.5 (1.0)
4	M10 x 2.0	104	101	N/A	102	103	53.5 (2.10)	44.0 (1.73)
5	M8 x 1.25	210	206	207	208	209	26.5 (1.043)	19.0 (0.748)
Bolt hole 2 has an 11.5 mm (0.452 in) counterbore included in the 42.5 mm (1.67 in) drill depth. Use sleeve J 42385-311 with the drill and tap. Bolt hole 3 has a 1.5 mm (0.059 in) counterbore included in the 31.0 mm (1.22 in) drill depth. Use sleeve J 42385-316 with the drill and tap. Bolt hole 4 has a 20.5 mm (0.807 in) counterbore included in the 53.5 mm (2.10 in) drill depth.
