Chevrolet
>>
2015
>>
SS Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Front Side Sensors
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Side Sensors

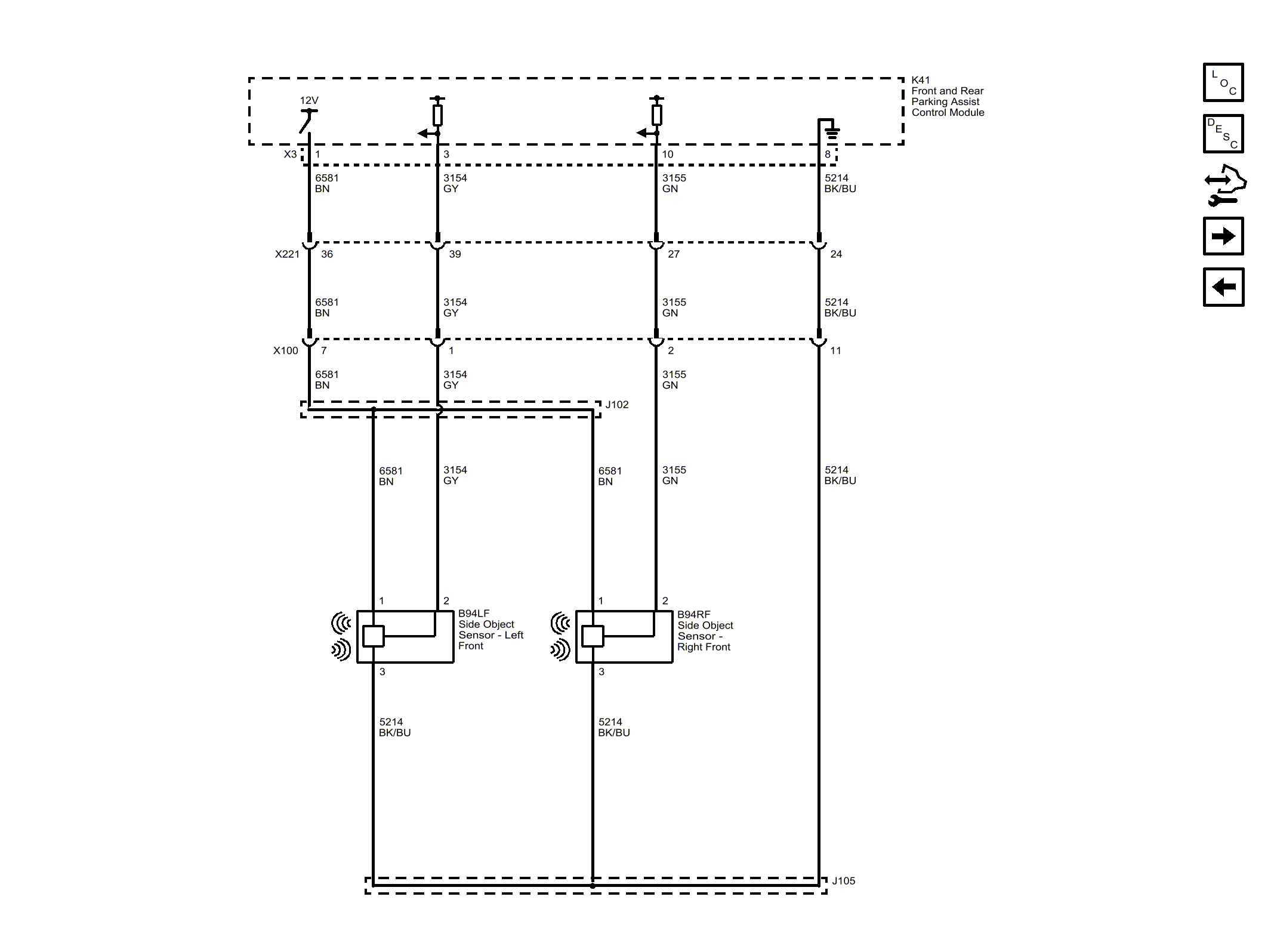

Fig 1: Front Side Sensors
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
