Front Seat Heater Control Module Replacement

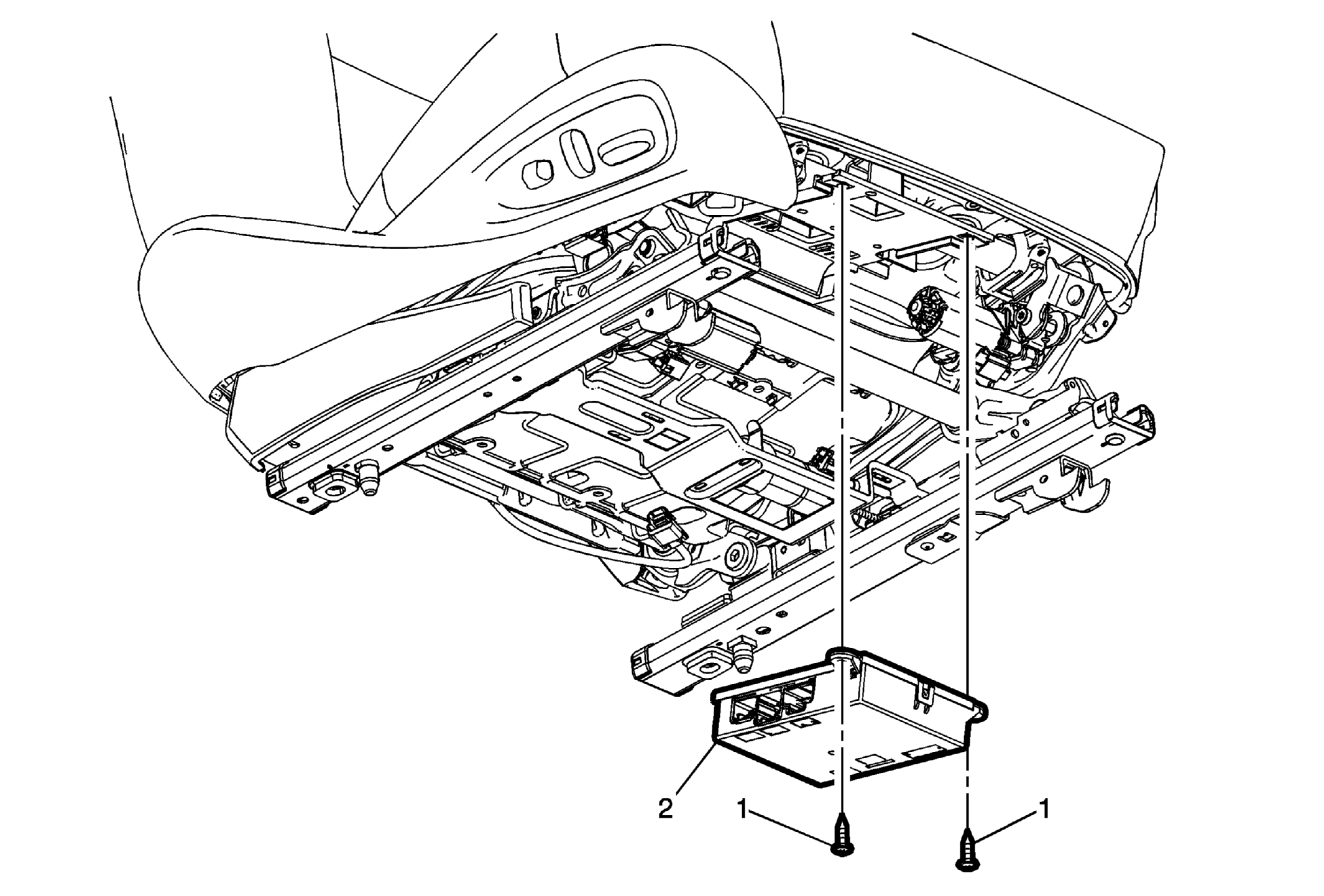

Fig 1: Front Seat Heater Control Module & Fasteners
GM3213674Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Heater Control Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Front Seat Heater Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Remove the heater control module from the wiring harness and module bracket.
  3. Refer to Control Module References for programing and setup information.
