Front Seat Belt Buckle Replacement

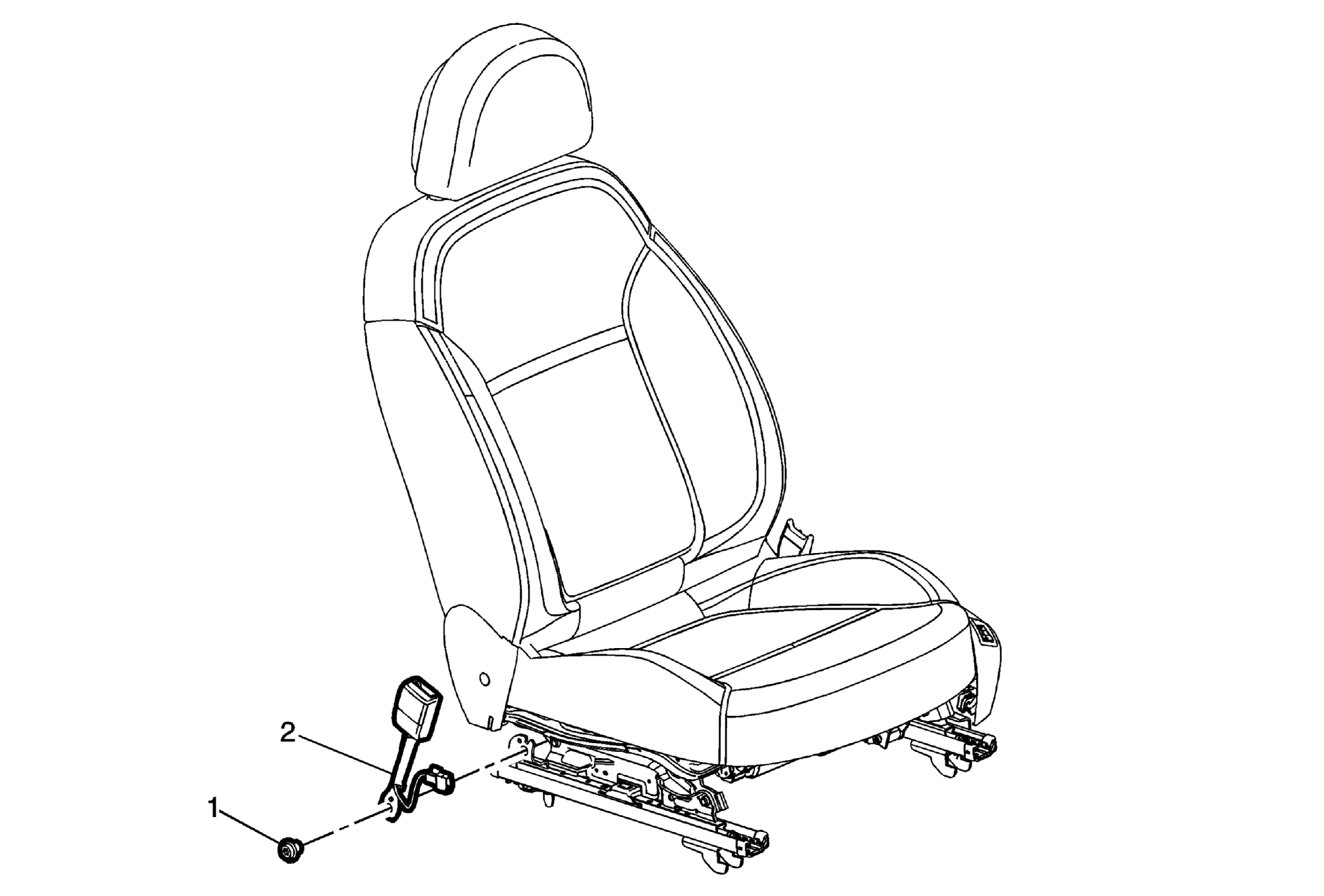

Fig 1: Front Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation
1	Front Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 40 N.m (30 lb ft)
2	Front Seat Belt Buckle Assembly Procedure Disconnect electrical connector.
