Communication Interface Module Replacement

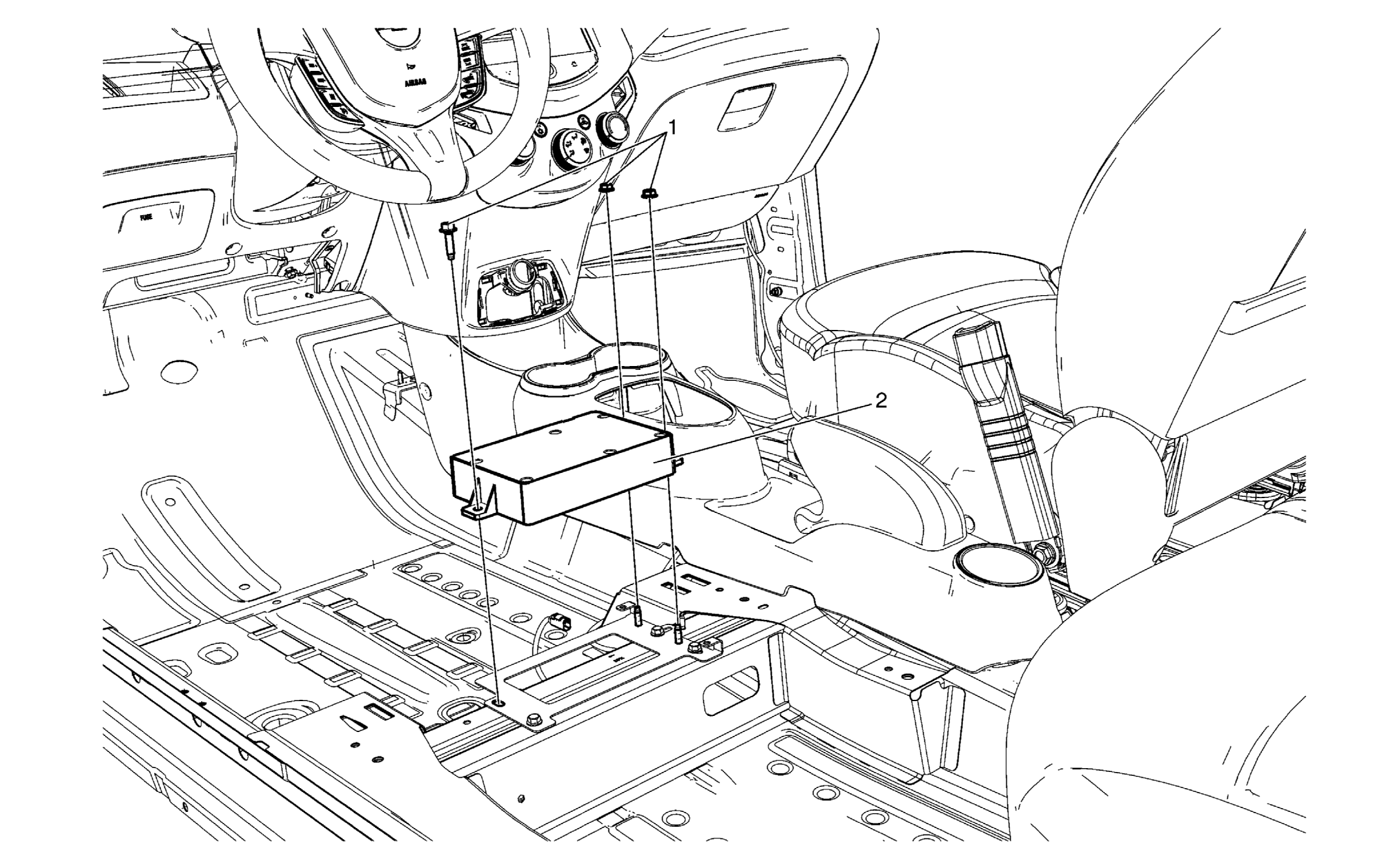

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedures Disconnect the battery negative cable. Remove driver front seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Communication Interface Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Communication Interface Module Procedure Disconnect the electrical connector.

Callout

Component Name

WARNING: Refer to Battery Disconnect Warning .

Preliminary Procedures

Disconnect the battery negative cable.
Remove driver front seat. Refer to Driver or Passenger Seat Removal and Installation .

Communication Interface Module Fastener (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Communication Interface Module
Procedure
Disconnect the electrical connector.
