Electronic Brake Control Module Replacement

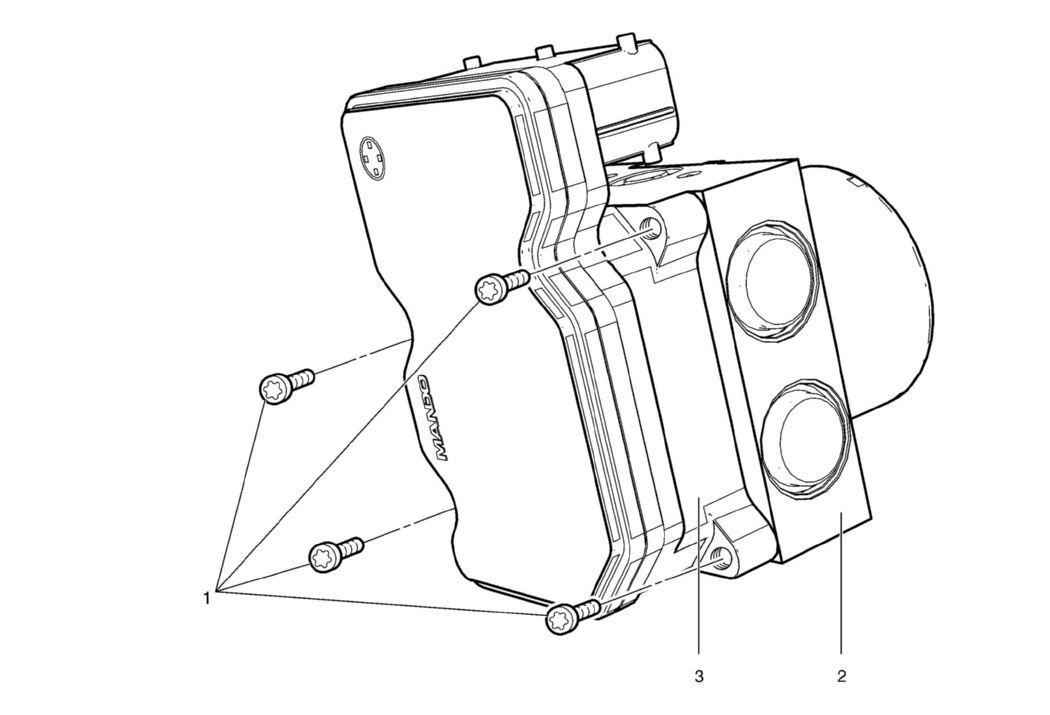

Fig 1: Electronic Brake Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM. Preliminary Procedure Remove the EBCM/BPMV assembly from the vehicle. Refer to Brake Pressure Modulator Valve Replacement .
1	Electronic Brake Control Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.8 N.m (25 lb in)
2	Brake Pressure Modulator Valve
3	Electronic Brake Control Module Procedure Separate the EBCM from the BPMV by carefully pulling apart. DO NOT pry the components apart. If a new EBCM is being installed, program the EBCM. Refer to Control Module References
