Fuel Tank Pressure Sensor Replacement (LFM)

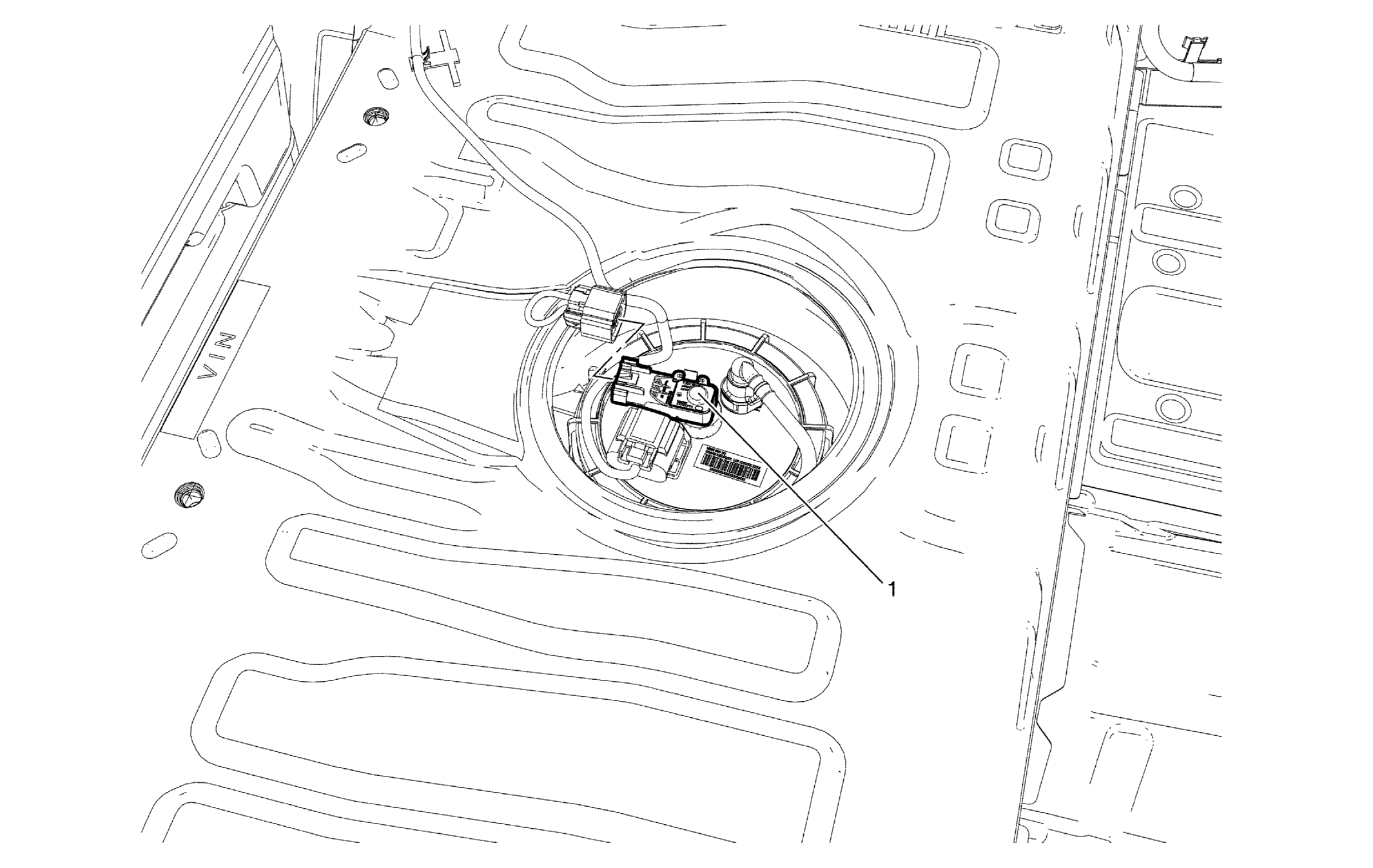

Fig 1: Fuel Tank Pressure Sensor (LFM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Fold the rear seat, remove the fuel pump cover. Disconnect the fuel tank pressure sensor electrical connector.
1	Fuel Tank Pressure Sensor Procedure Remove the fuel tank pressure sensor from the fuel pump.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Fold the rear seat, remove the fuel pump cover.
Disconnect the fuel tank pressure sensor electrical connector.

Fuel Tank Pressure Sensor
Procedure
Remove the fuel tank pressure sensor from the fuel pump.
