Assembly Procedure

  1. Install the fuel tank heat shield. Refer to Fuel Tank Heat Shield Replacement (LFM) .
  2. Install the fuel pump (5). Refer to Fuel Tank Fuel Pump Module Replacement (LFM) .
  3. Install the evaporative emission canister (4). Refer to Evaporative Emission Canister Replacement (LFM) .
  4. Install the fuel tank feed pipe (3).

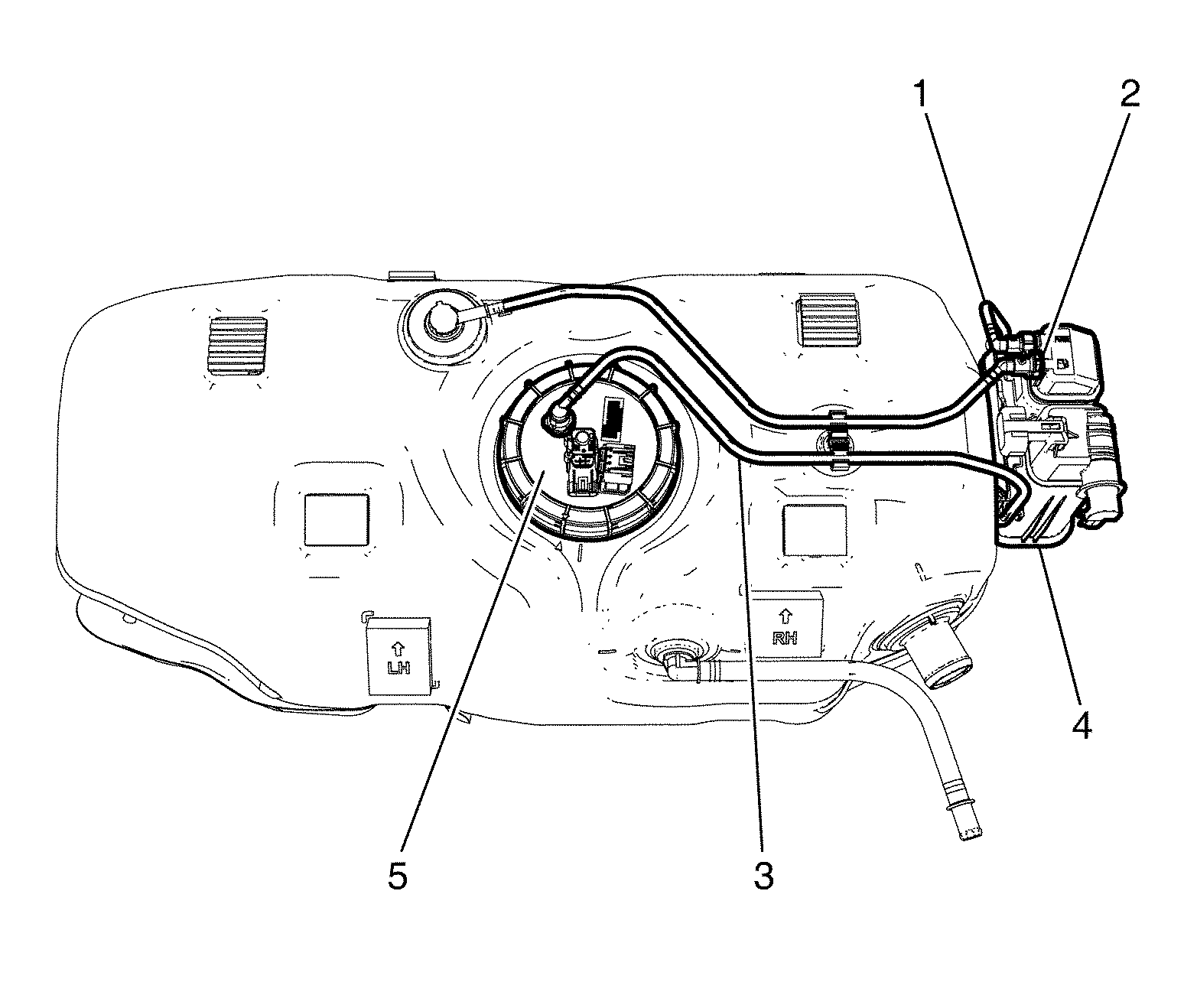

    Fig 1: Evaporative Emission Canister Purge Pipe
    GM3415999Courtesy of GENERAL MOTORS COMPANY
  5. Connect the fuel tank vent pipe connector (2).
  6. Install the evaporative emission canister purge pipe (1).
