Ignition Coil Replacement (LFM)

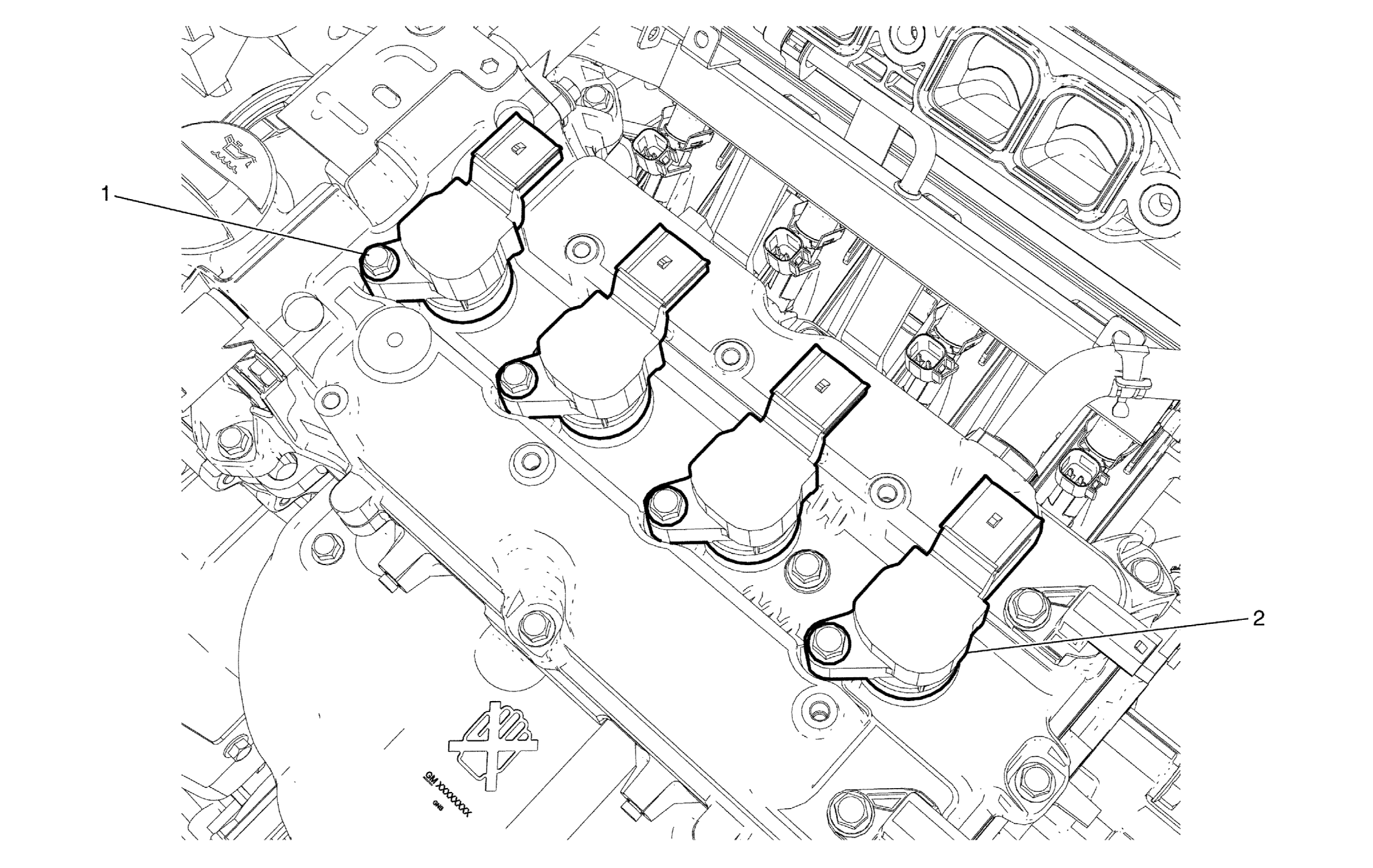

Fig 1: Ignition Coil (LFM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the ignition coil cover. Refer to Ignition Coil Cover Replacement (LFM) . Disconnect the 4 ignition coil connectors.
1	Ignition Coil Cover Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Remove the ignition coil bolts (1). Tighten 10 N.m (89 lb in)
2	Ignition Coil (Qty: 4) Procedure Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the ignition coil cover. Refer to Ignition Coil Cover Replacement (LFM) .
Disconnect the 4 ignition coil connectors.

Ignition Coil Cover Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Procedure
Remove the ignition coil bolts (1).
Tighten
10 N.m (89 lb in)

Ignition Coil (Qty: 4)
Procedure
Transfer parts as necessary.
