Manifold Absolute Pressure Sensor Replacement (LFM)

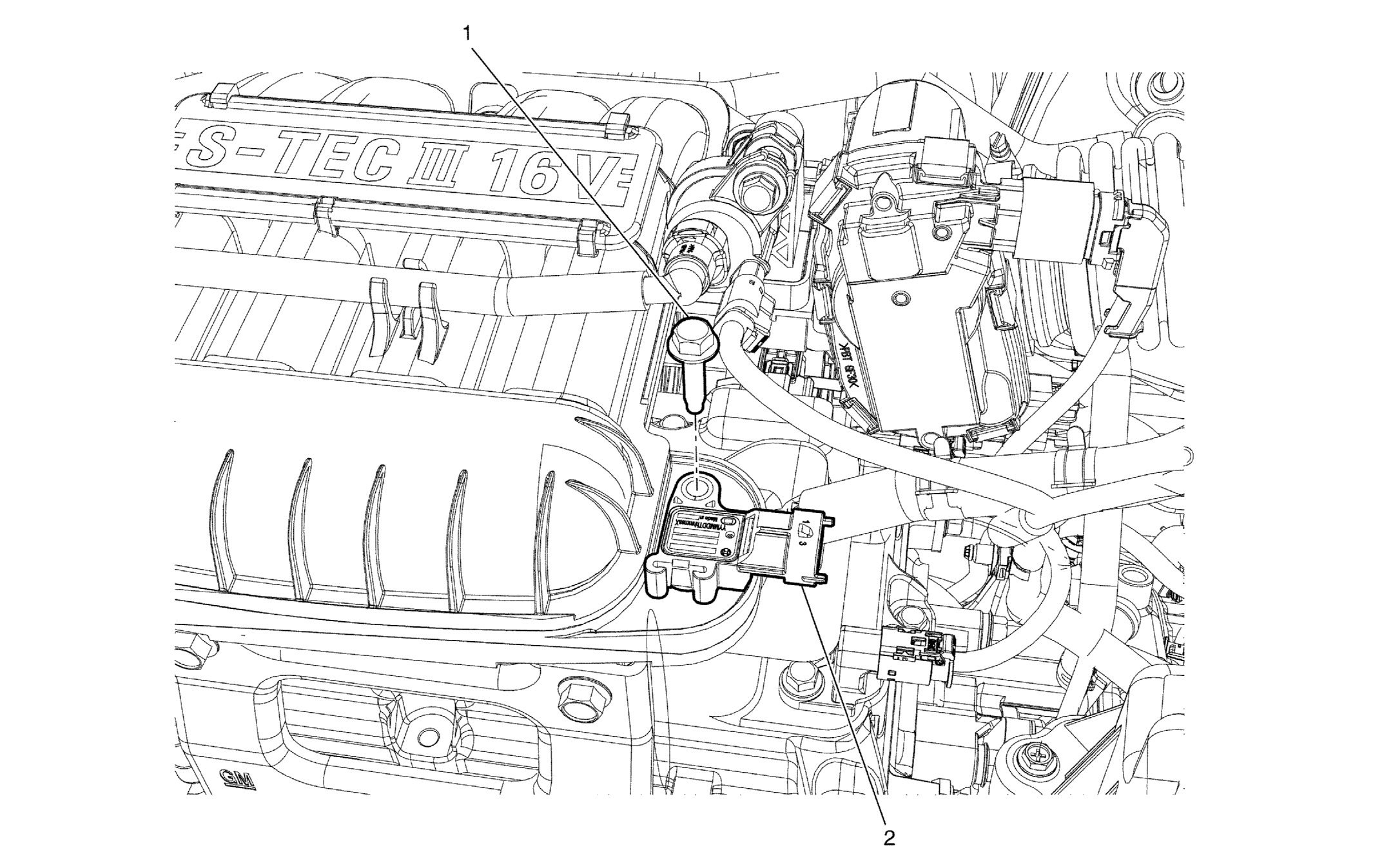

Fig 1: Manifold Absolute Pressure Sensor (LFM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the manifold absolute pressure sensor connector.
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the manifold absolute pressure sensor bolt. Tighten 10 N.m (89 lb in)
2	Manifold Absolute Pressure Sensor

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the manifold absolute pressure sensor connector.

Manifold Absolute Pressure Sensor Bolt

CAUTION: Refer to Fastener Caution .

Procedure
Remove the manifold absolute pressure sensor bolt.
Tighten
10 N.m (89 lb in)

Manifold Absolute Pressure Sensor
