Subsystem References (5 of 5)

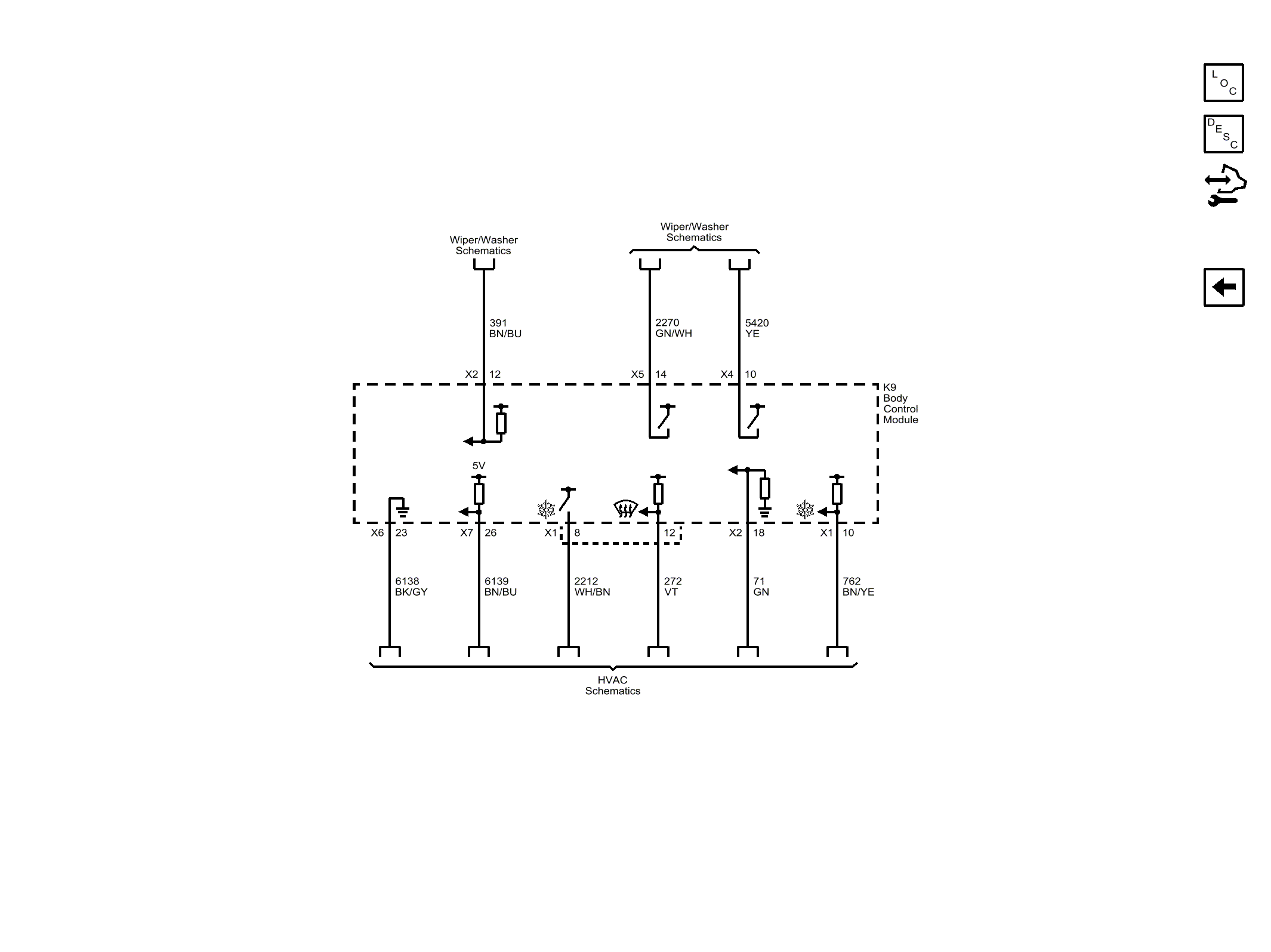

Fig 1: Subsystem References (5 Of 5)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
