Transmission Control Module Replacement

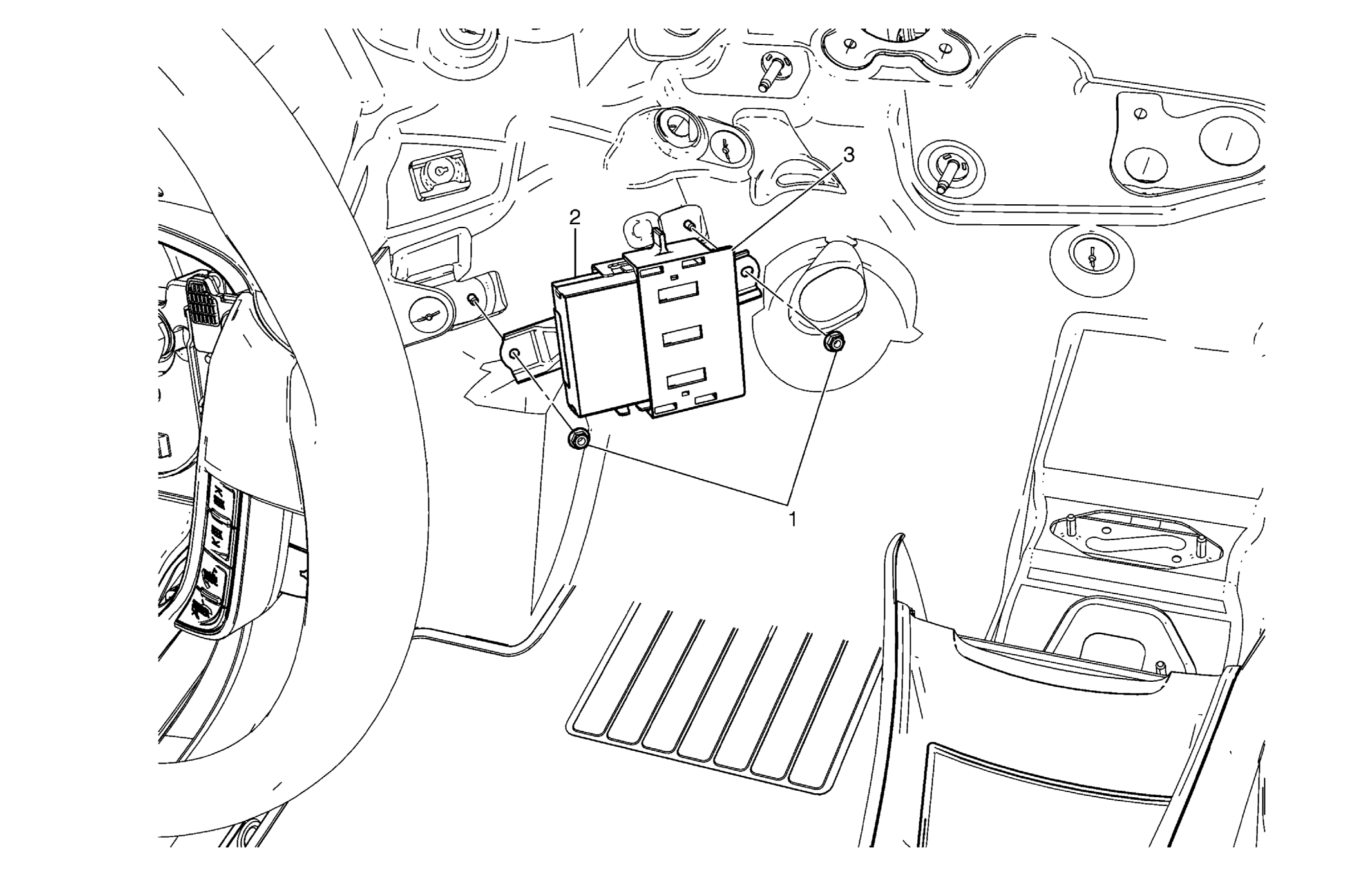

Fig 1: Transmission Control Module
GM2780720Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 TCM Fastener
CAUTION: Refer to Fastener Caution .

Tighten
7 N.m (62 lb in)
2 Transmission Control Module (TCM)

Procedure

  1. Disconnect the TCM electrical connector.
  2. The TCM must be programmed when replaced. Refer to Control Module References for programming and setup information.
  3. Perform the transmission adaptive learn when replaced. Refer to Transmission Adaptive Learn .
3 TCM Cover
