Installation Procedure

  1. Lightly lubricate the rear wheel speed sensor O-ring with rear axle lubricant. Refer to Adhesives, Fluids, Lubricants, and Sealers .

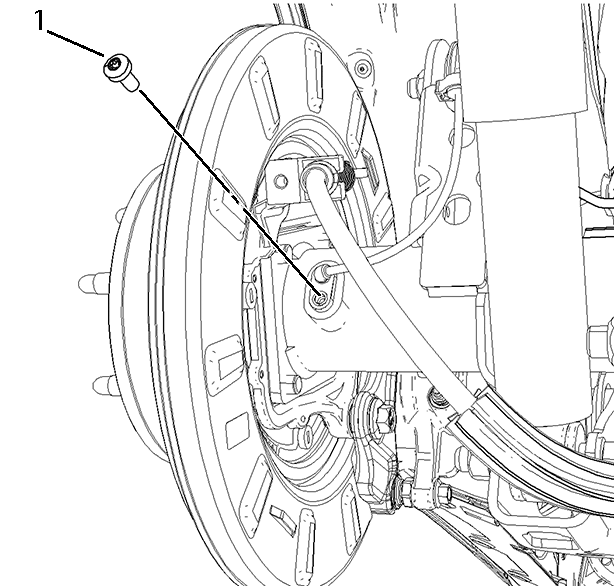

    2. Fig 1: Rear Wheel Speed Sensor Bolt
    GM3632926Courtesy of GENERAL MOTORS COMPANY
  2. Install the rear wheel speed sensor assembly to the rear axle.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the rear wheel speed sensor bolt (1) and tighten to 13 (115 lb in).

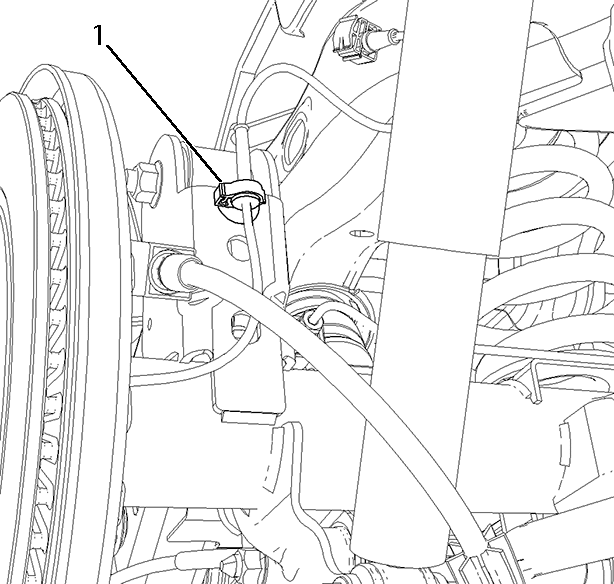

    4. Fig 2: Rear Wheel Speed Sensor Harness Retainer
    GM3632924Courtesy of GENERAL MOTORS COMPANY
  4. Install the rear wheel speed sensor harness retainer (1) to the rear axle.

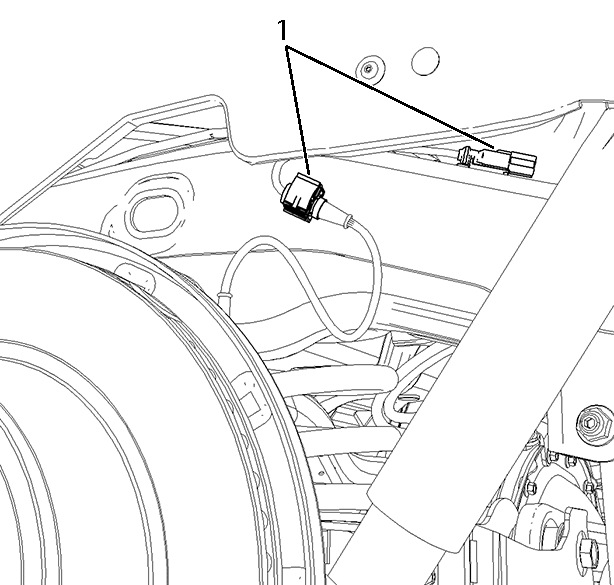

    5. Fig 3: Rear Wheel Speed Sensor Harness Retainer
    GM3632920Courtesy of GENERAL MOTORS COMPANY
  5. Connect the rear wheel speed sensor electrical connector and install the retainers (1) to the frame rail.
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (6-Lug Wheel) .
  7. Perform the Diagnostic System Check - Vehicle .
