Linear Interconnect Network (Trax)

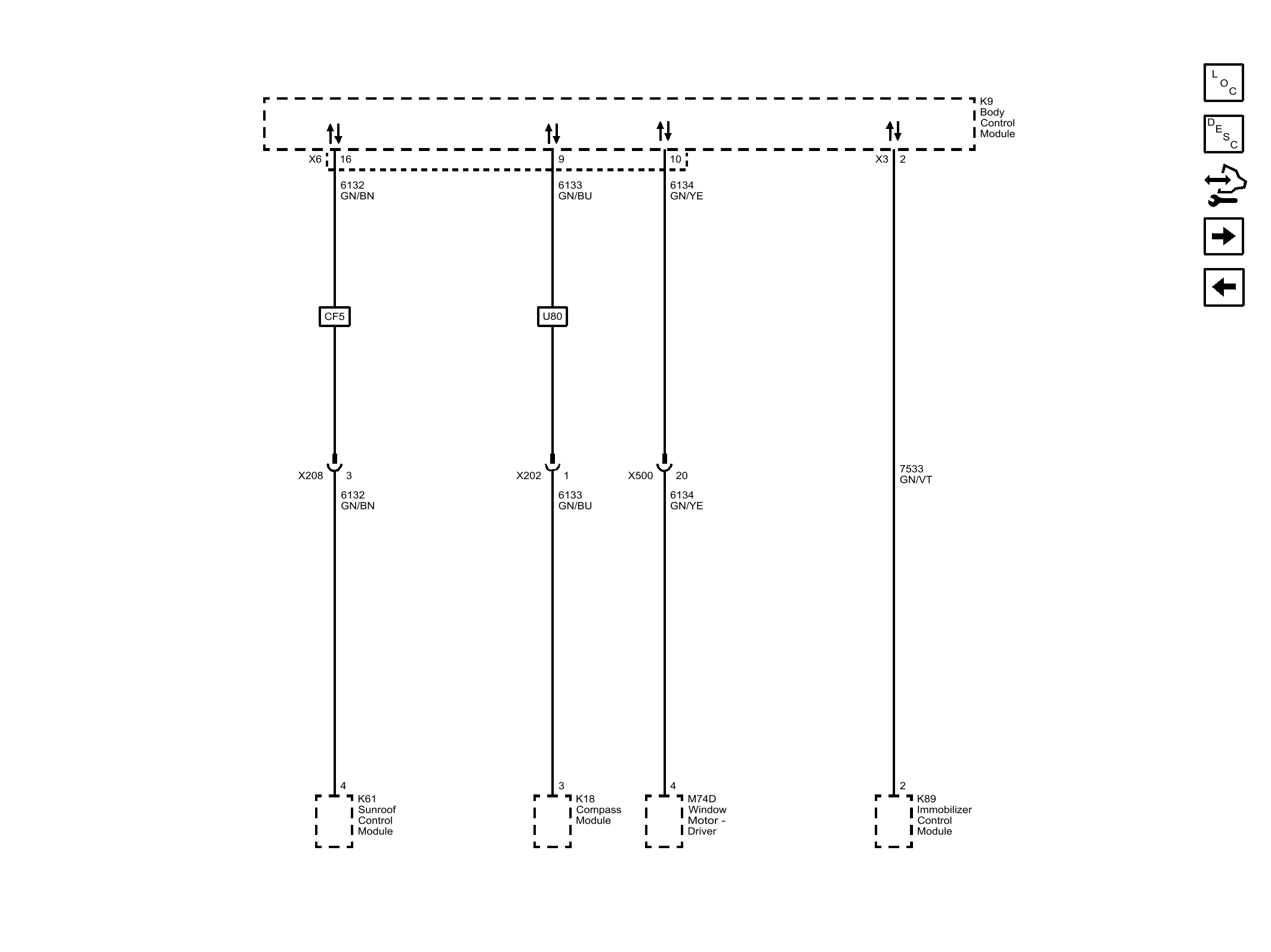

Fig 1: Linear Interconnect Network (Trax)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
