Right Front of Engine Components

Right Front of Engine Components

Items
1: Q38 Throttle Body Q38 Throttle Body
2: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake
3: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake
4: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch LHD
5: B1C A/C Low Side Pressure Sensor B1C A/C Low Side Pressure Sensor RHD
6: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1
7: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2
8: G1 A/C Compressor G1 A/C Compressor X1 X1 and G1 A/C Compressor X2 X2
9: E41 Engine Coolant Thermostat Heater E41 Engine Coolant Thermostat Heater
10: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust
11: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust

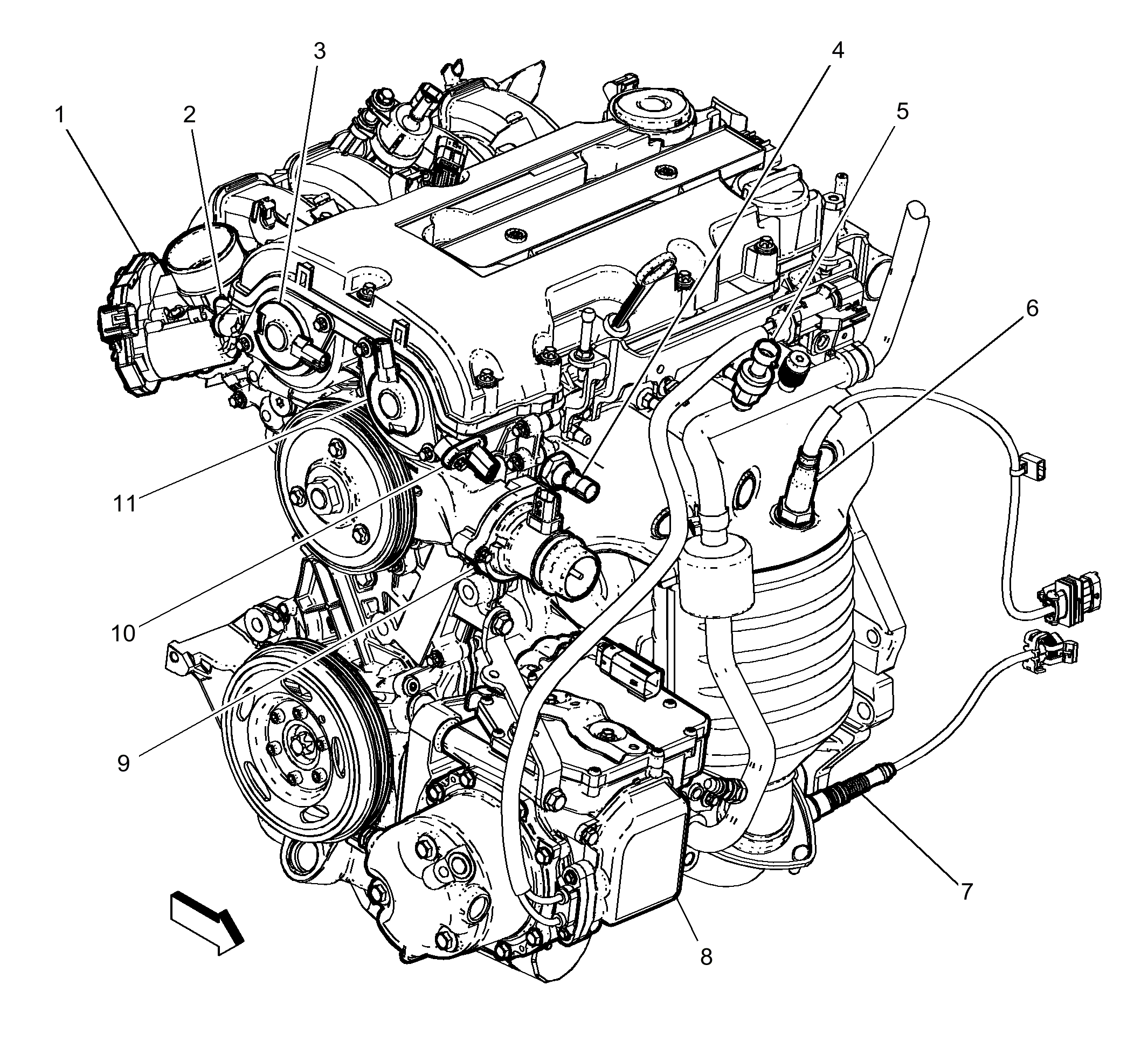

Fig 1: Right Front Of Engine Components
GM3753719Courtesy of GENERAL MOTORS COMPANY
