Body Control Module Bracket Replacement

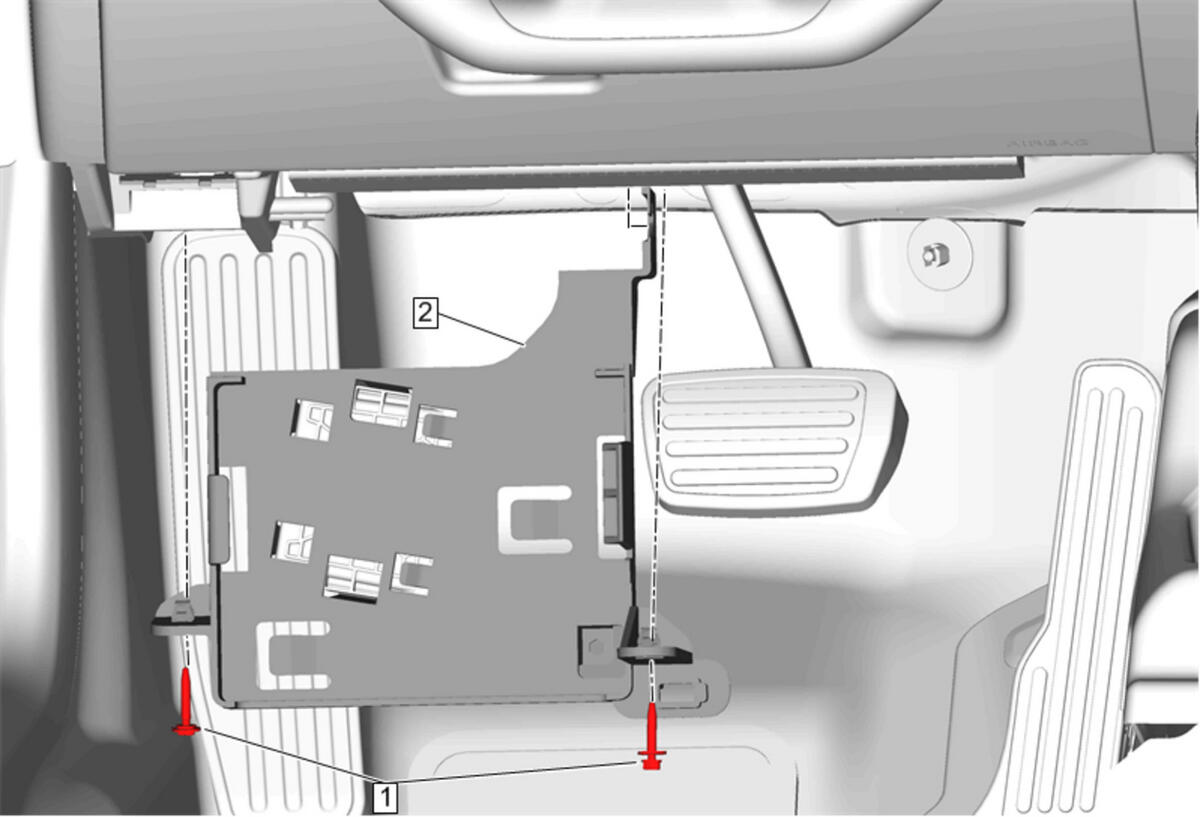

Fig 1: Body Control Module Bracket
GM4199581Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Lower Airbag Replacement - Driver Side
  2. Instrument Panel Knee Bolster Replacement (Driver Knee Bolster Reinforcement)
  3. Instrument Panel Outer Air Outlet Duct Replacement - Left Side (Outboard)Instrument Panel Outer Air Outlet Duct Replacement - Left Side (Inboard)
1 Body Control Module Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Body Control Module Bracket Nut
3 Body Control Module Bracket

Procedure

  1. Disconnect and reposition harness as necessary.
  2. Transfer components as necessary.
