Body Control Module Replacement

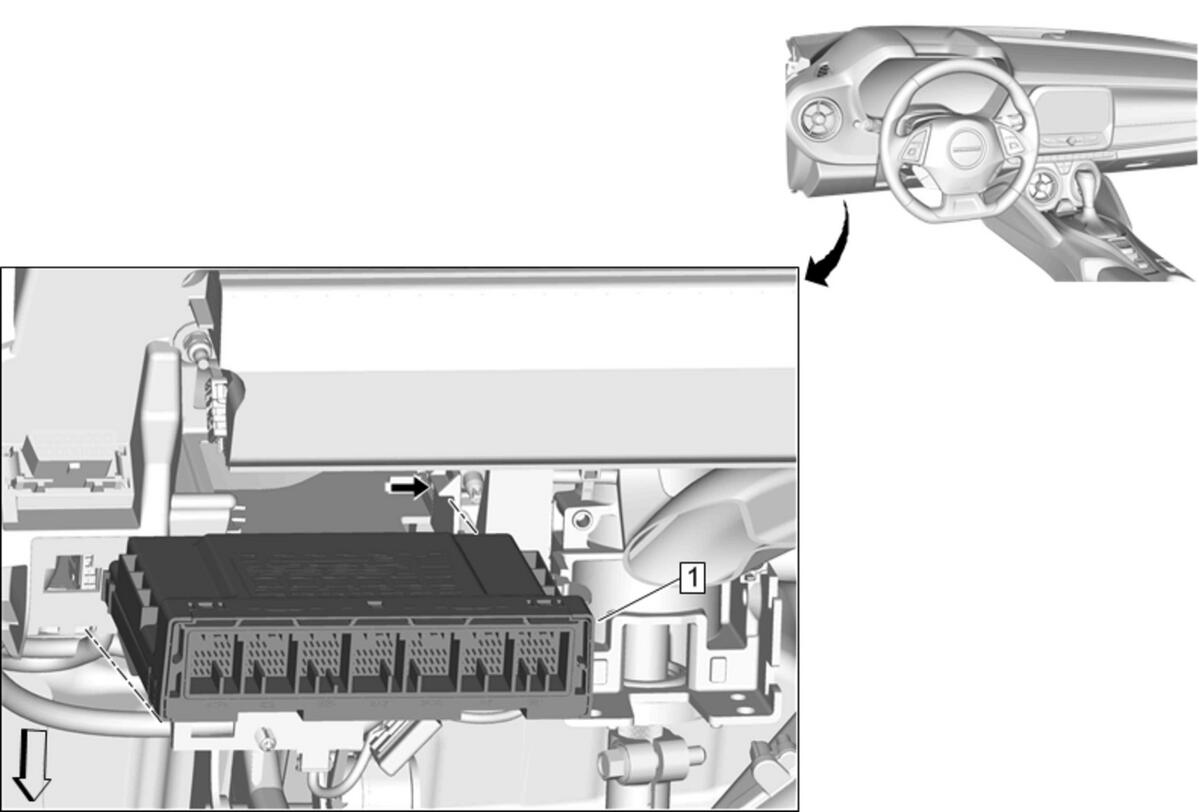

Fig 1: Body Control Module

GM4196571

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Body Control Module Bracket Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Body Control Module

Procedure

Disconnect the electrical connectors.
Swing the body control module bracket forward, release the bracket tab and slide module out of the bracket.
Control Module References for programming and set-up information, if required.
