Linear Interconnect Network (LIN) Communication Busses

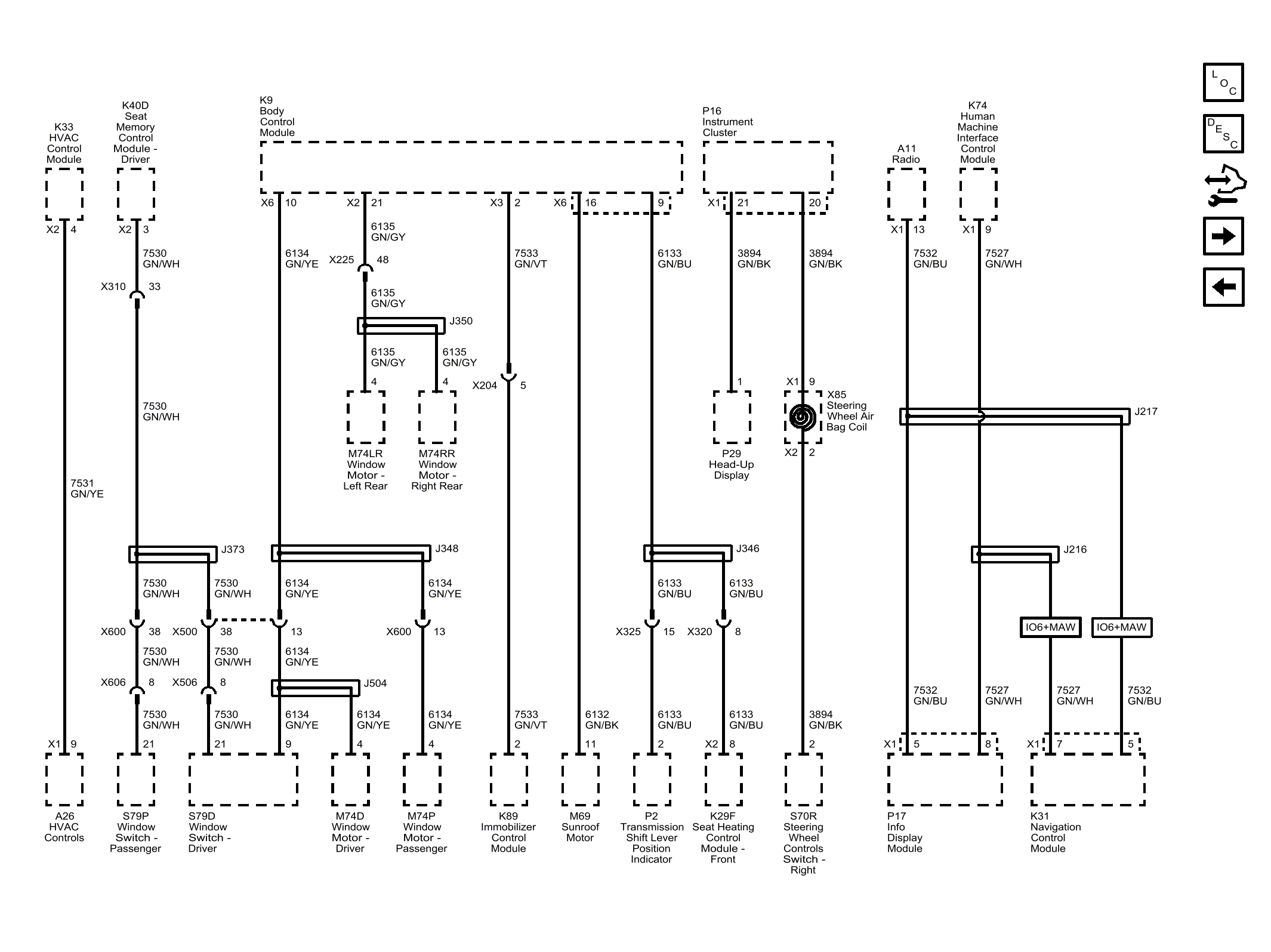

Fig 1: Linear Interconnect Network (LIN) Communication Busses
GM4232405Courtesy of GENERAL MOTORS COMPANY
