MOST Communication Bus (IO5/IO6)

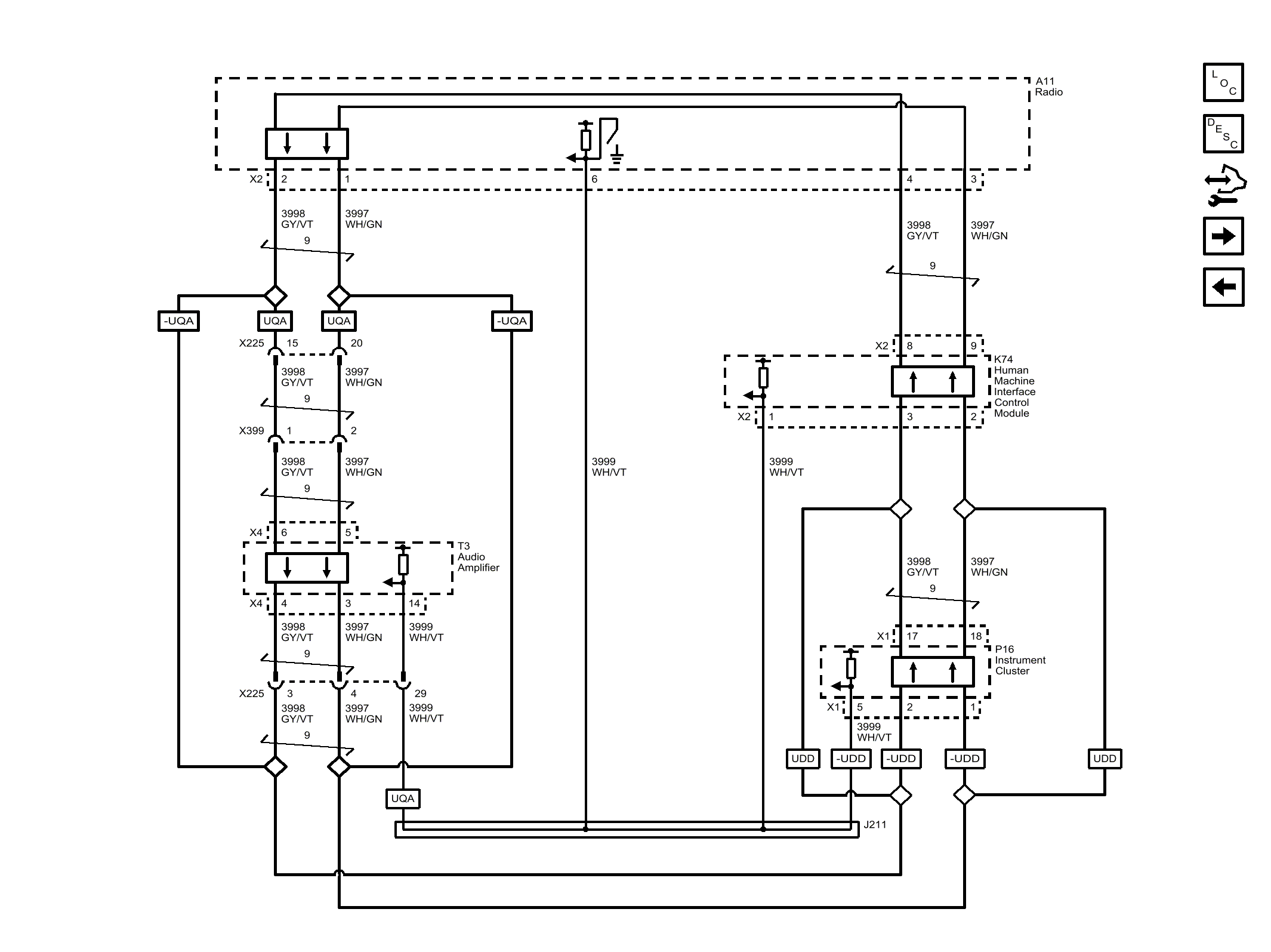

Fig 1: MOST Communication Bus (IO5/IO6)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
