Theft Deterrent Module Replacement

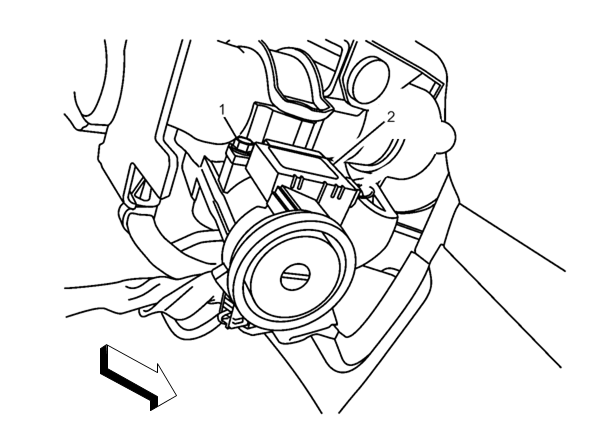

GM3825600Courtesy of
Callout Component Name
Preliminary Procedure
Steering Column Housing Cover Replacement
1 Theft Deterrent Module Fastener [2x]
CAUTION:

Refer to Fastener Caution .
2 Theft Deterrent Module

Procedure

  1. Electrical Connector - Disconnect
    NOTE:

    Initialization is not necessary when only the theft deterrent module is replaced with a new one.

  2. Refer to Control Module References , for programming and set up procedures.
