Power Steering Control Module Replacement

Courtesy of

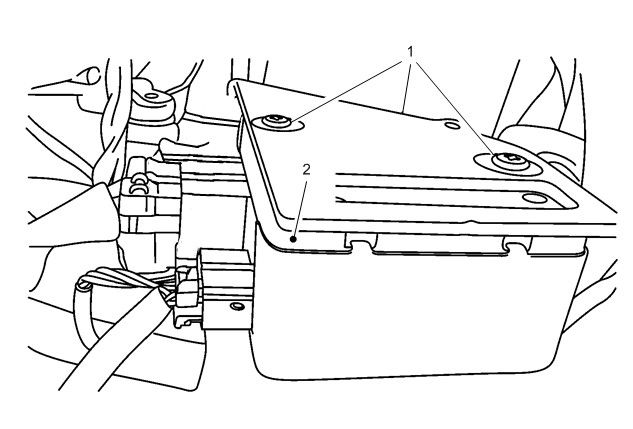

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
1	Power Steering Control Module Fastener [3x] CAUTION: Refer to Fastener Caution .
2	Power Steering Control Module Procedure Electrical Connector - Disconnect [4x] Perform all necessary programming and setup procedures for the control module:Control Module References .

Callout

Component Name

Preliminary Procedure
Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection

Power Steering Control Module Fastener [3x]

CAUTION:

Power Steering Control Module

Procedure

Electrical Connector - Disconnect [4x]
Perform all necessary programming and setup procedures for the control module:Control Module References .
