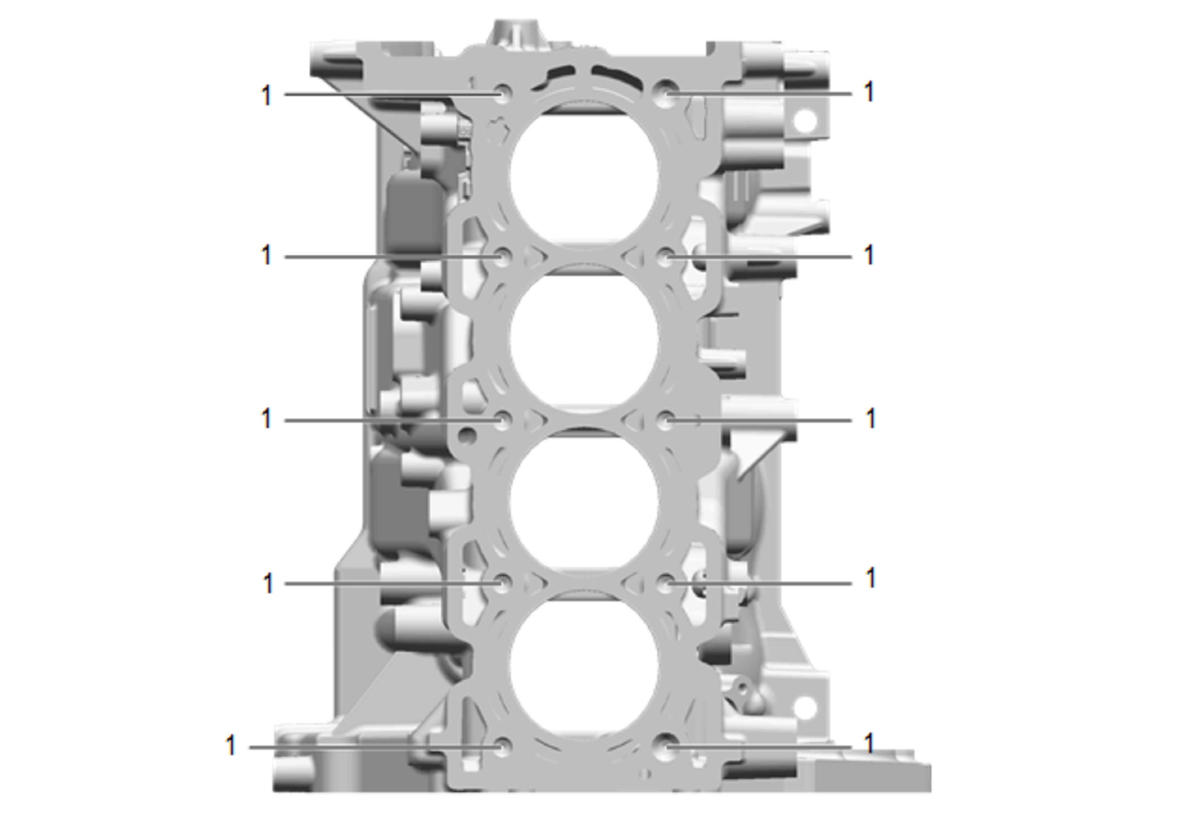

Engine Block - Top View
Courtesy of GENERAL MOTORS COMPANY Engine Block - Top View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M11x2.0 |
108 |
723 |
none |
724 |
725 |
88.0 |
3.46 |
80.0 |
3.15 |
