Removal Procedure

WARNING:

Refer to Exhaust Service Warning .

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Disconnect Heated Oxygen Sensor - Sensor 2 Heated Oxygen Sensor Replacement - Sensor 2
  3. Disconnect Exhaust System Insulator, Hanger, Bracket Exhaust System Insulator, Hanger, Bracket Replacement (LCV) Exhaust System Insulator, Hanger, Bracket Replacement (LFX)

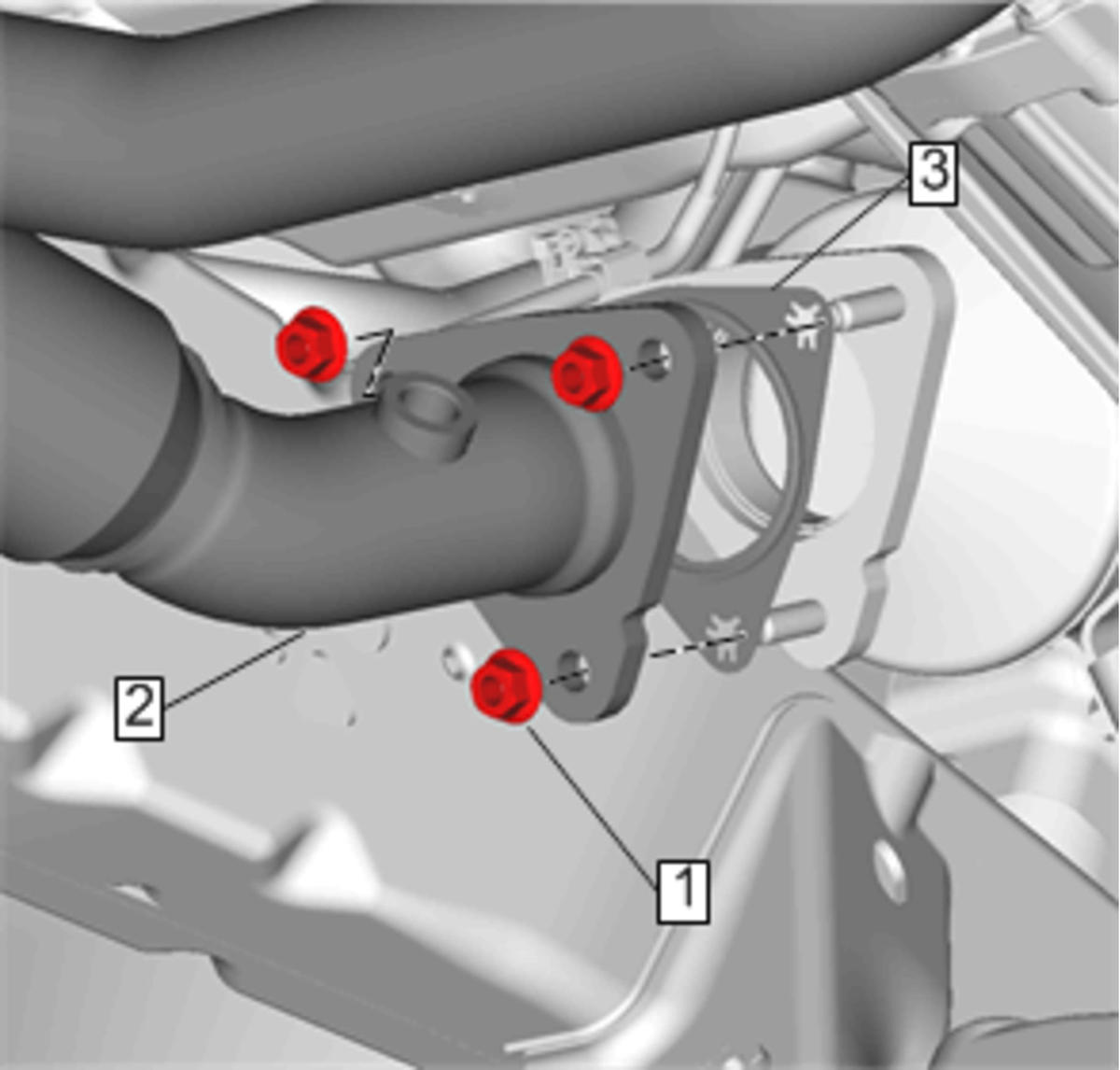

    4. Fig 1: Exhaust Pipe Fasteners
    GM4088670Courtesy of GENERAL MOTORS COMPANY
  4. Remove Exhaust Pipe Fasteners (1)
  5. Remove Exhaust Pipe (2)
  6. Remove Exhaust Gasket (3) and DISCARD

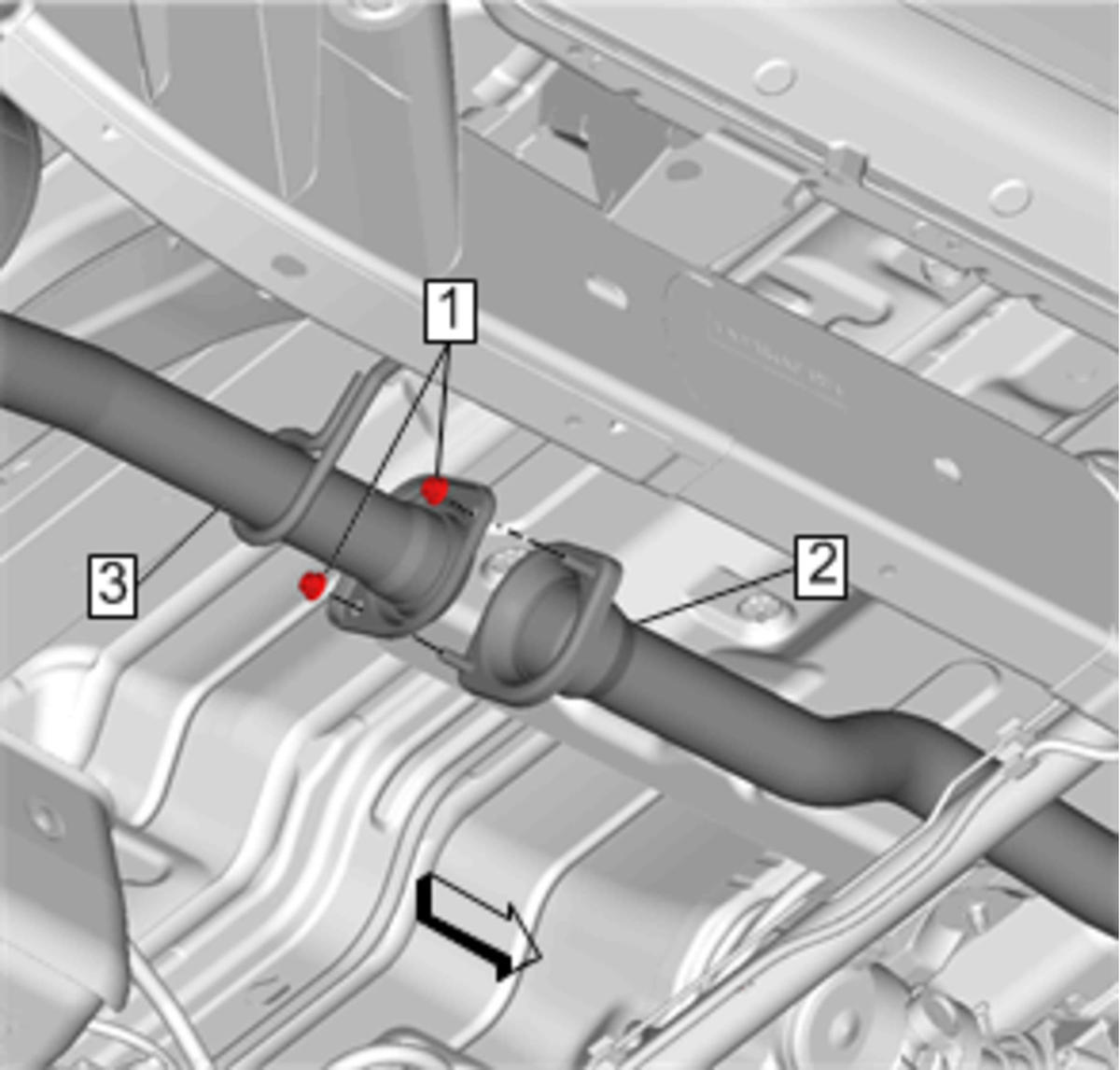

    7. Fig 2: Exhaust Pipe Fasteners
    GM4088792Courtesy of GENERAL MOTORS COMPANY
  7. Remove Exhaust Pipe Fasteners (1)
  8. Disconnect Exhaust Front Pipe (2) @Exhaust Muffler (3)
  9. Remove Exhaust Front Pipe (2)
