Keyless Entry Control Module Bracket Replacement

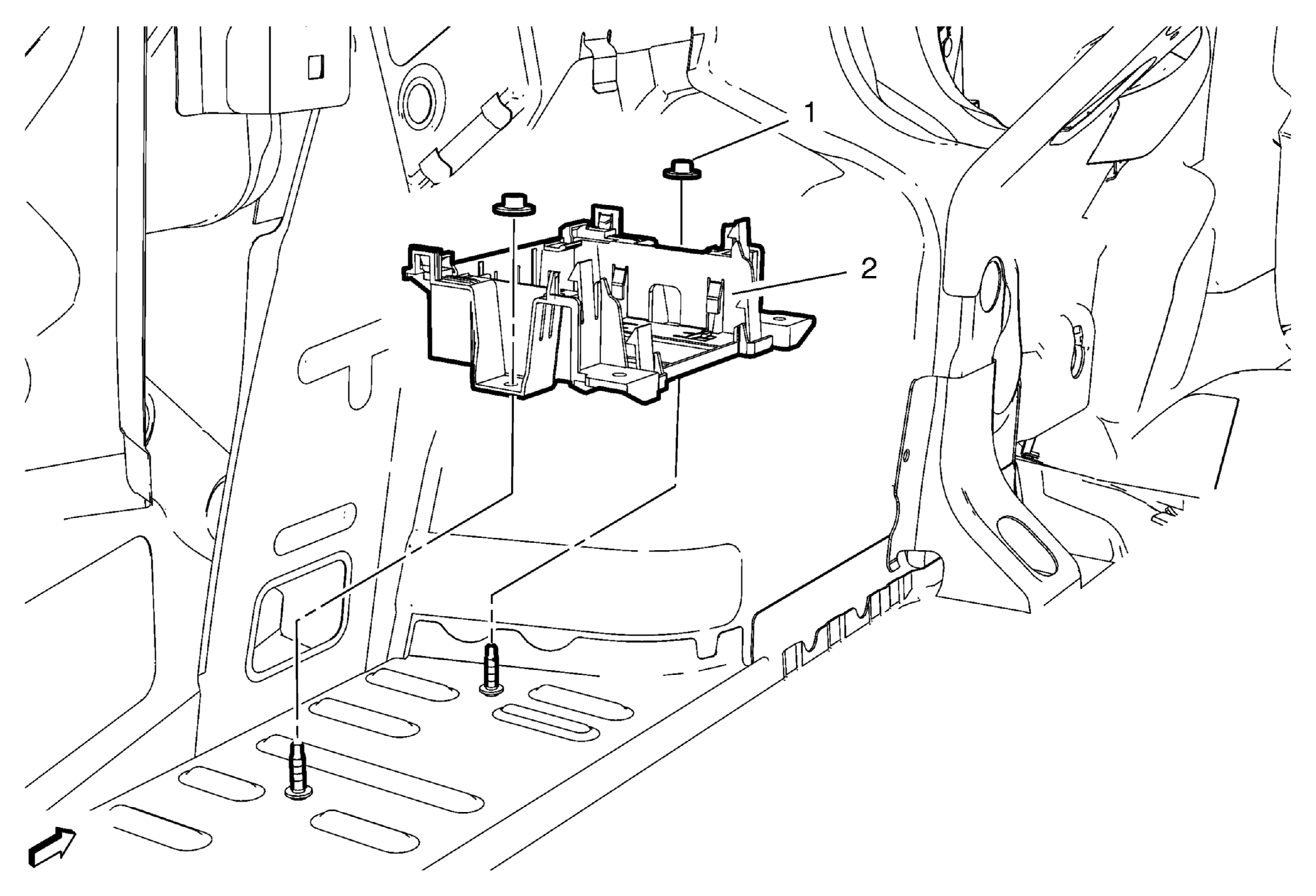

Fig 1: Keyless Entry Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Compartment Side Trim Replacement - Left Side Keyless Entry Control Module Replacement
1	Keyless Entry Control Module Bracket Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Keyless Entry Control Module Bracket

Callout

Component Name

Preliminary Procedures

Keyless Entry Control Module Bracket Nut [2x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Keyless Entry Control Module Bracket
