Remote Control Door Lock Receiver Replacement

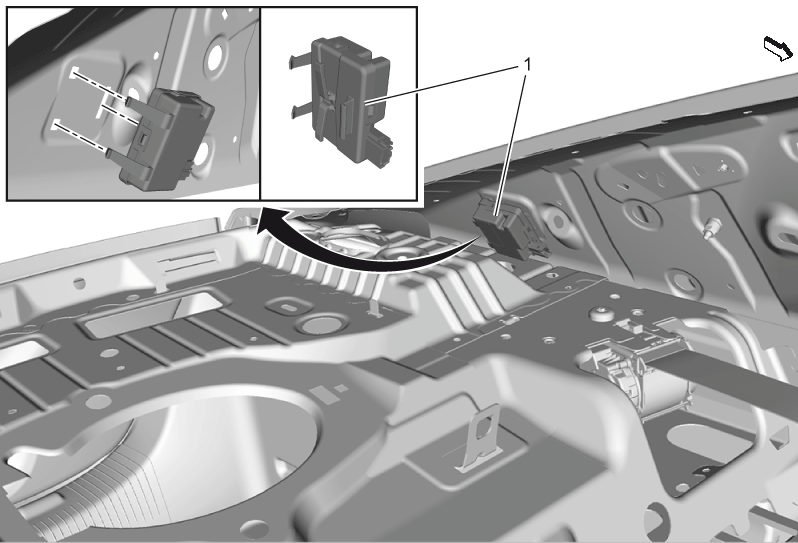

Fig 1: Remote Control Door Lock Receiver
GM4422003Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Window Panel Trim Replacement
1 Remote Control Door Lock Receiver

Procedure

  1. Retainer» Loosen [2x]
  2. Disconnect the electrical connector.
