Accelerator Pedal Replacement

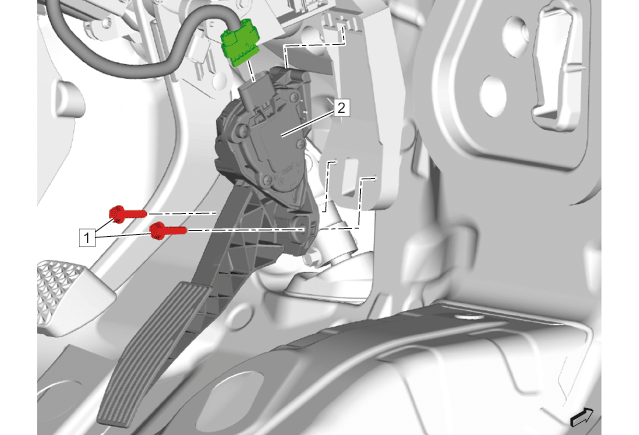

Fig 1: Accelerator Pedal
GM3684424Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Accelerator Pedal Fastener [2x]
CAUTION: Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)
2 Accelerator Pedal Assembly
Procedure
Disconnect the electrical connector.
