Crankshaft Position Sensor Replacement

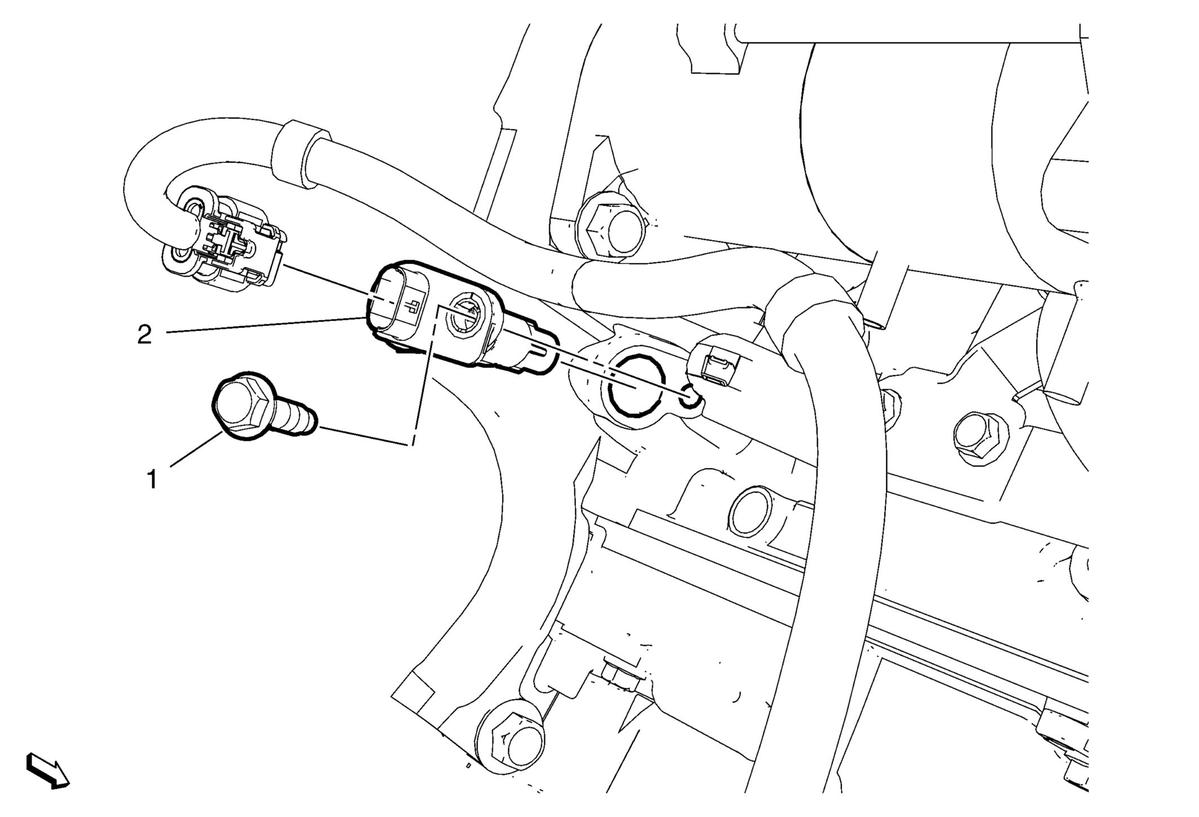

Fig 1: Crankshaft Position Sensor (FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle.» Lifting and Jacking the Vehicle
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor Procedure Disconnect the electrical connector. Perform the crankshaft position sensor variation learn. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle.» Lifting and Jacking the Vehicle

Crankshaft Position Sensor Bolt

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector.
Perform the crankshaft position sensor variation learn. Refer to Control Module References .
