Engine Oil Pressure Sensor Replacement

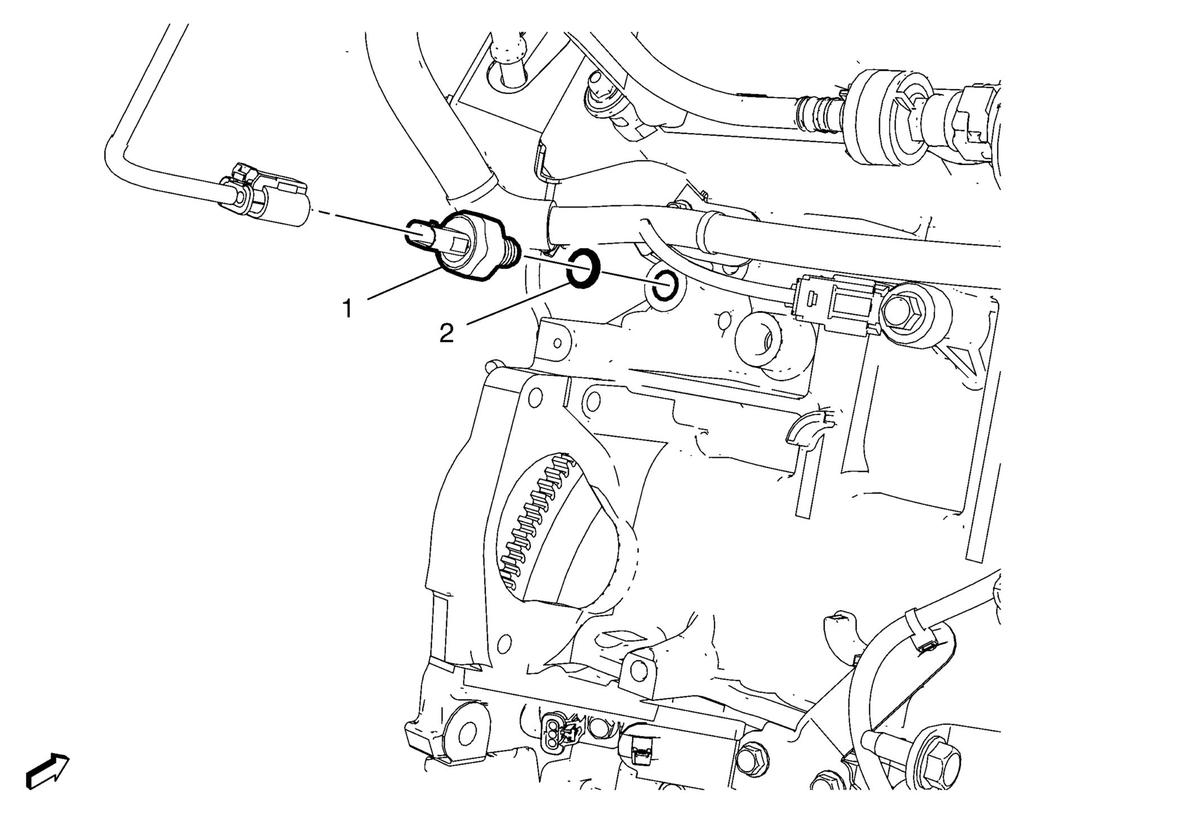

Fig 1: Engine Oil Pressure Sensor
GM3686237Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Starter Replacement
1 Engine Oil Pressure Sensor
CAUTION: Refer to Fastener Caution .

Procedure
Disconnect the electrical connectors.
Tighten
35 N.m (26 lb ft)
2 Engine Oil Pressure Sensor Seal
