Installation Procedure

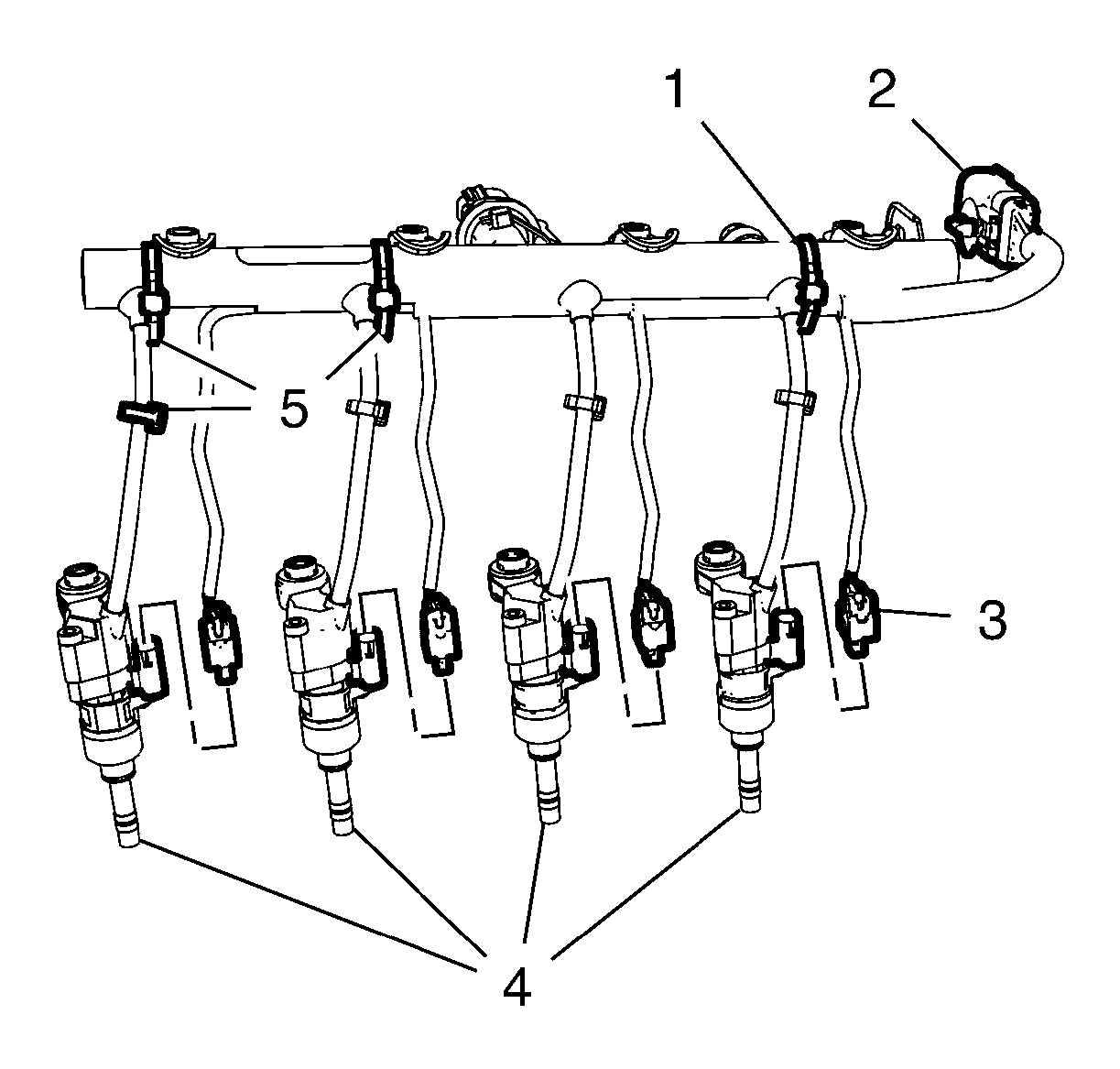

- Install 4 the fuel injector wiring harness (3) to the 4 fuel injectors (4).
Courtesy of GENERAL MOTORS COMPANY
- Clip in the fuel injector wiring harness (2) to the fuel rail.
- Install NEW 7 cable ties (1, 5) to the position where they have been removed.

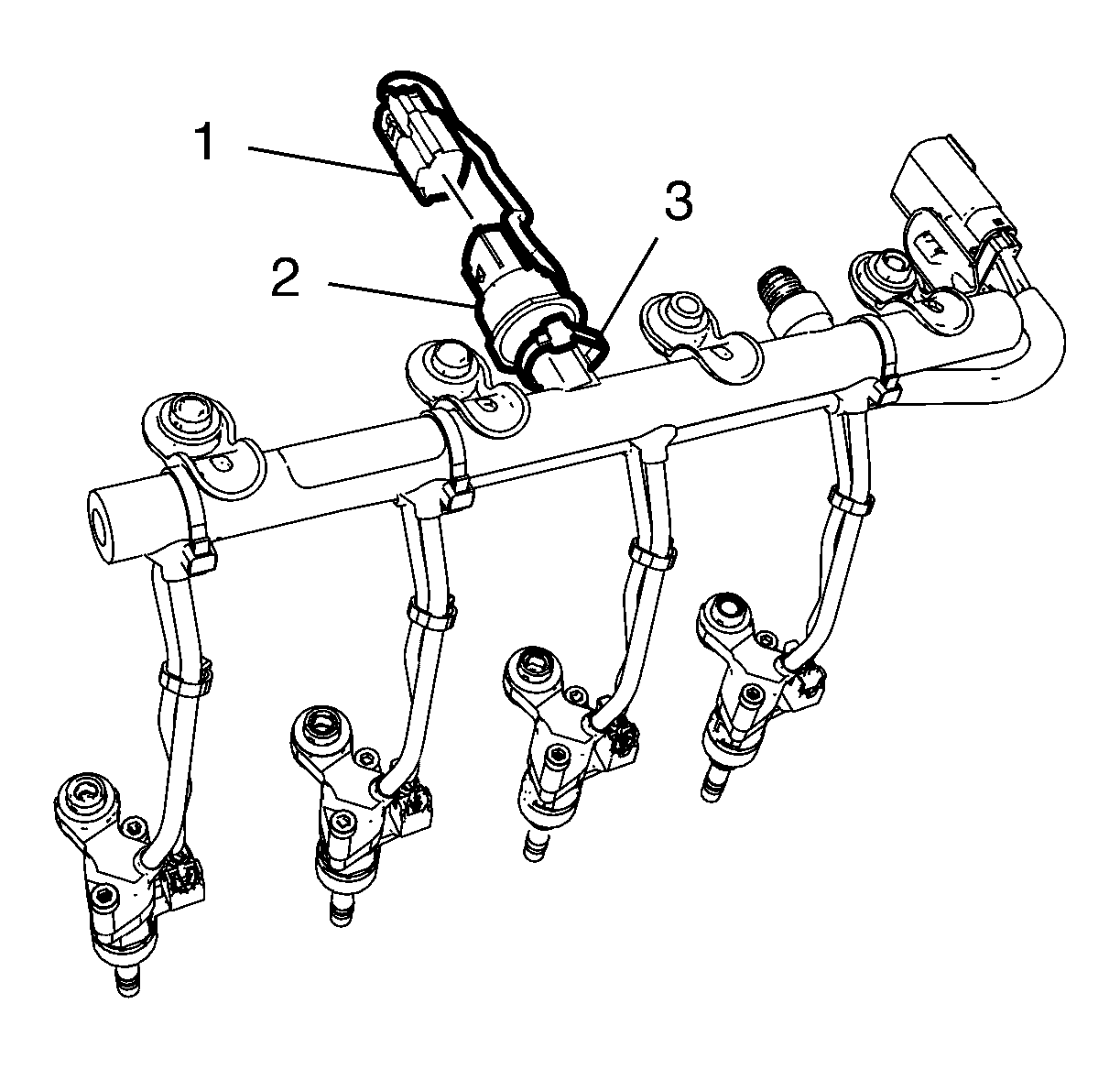

- Connect the fuel injection fuel rail fuel pressure sensor wiring harness plug (1) to the fuel rail fuel pressure sensor (2).
Courtesy of GENERAL MOTORS COMPANY
- Install a NEW cable tie (3) to the position where it have been removed.
