Installation Procedure

  1. Fuel Tank Filler Pipe (1)» Install

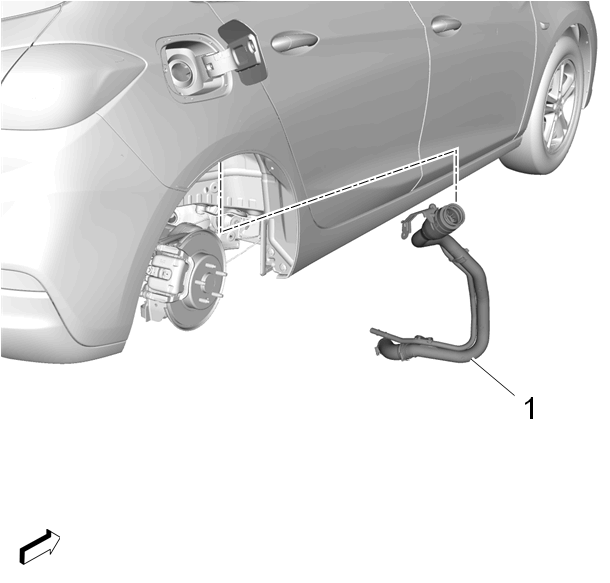

    Fig 1: Fuel Tank Filler Pipe
    GM4704301Courtesy of GENERAL MOTORS COMPANY
  2. Fuel Tank Filler Pipe Ground Bolt (1)» Install and tighten 22 N.m (16 lb ft)

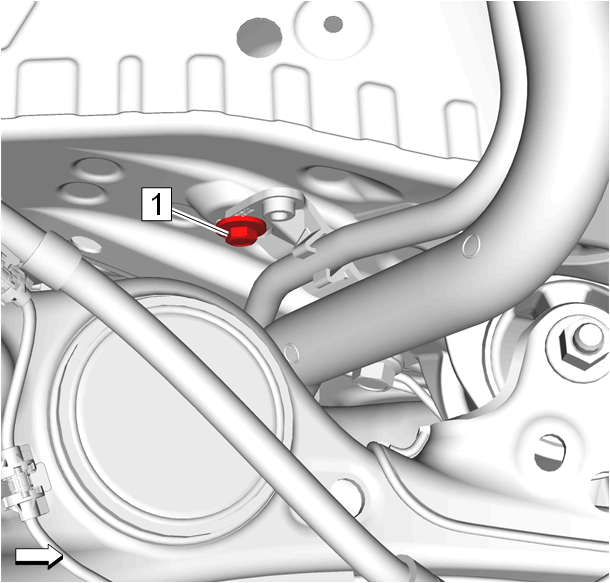

    Fig 2: Fuel Tank Filler Pipe Ground Bolt
    GM4704300Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Fastener Caution
  3. Fuel Tank Filler Vent Pipe (2) @ Fuel Tank Vent Pipe (1)» Connect - Plastic Collar Quick Connect Fitting Service .

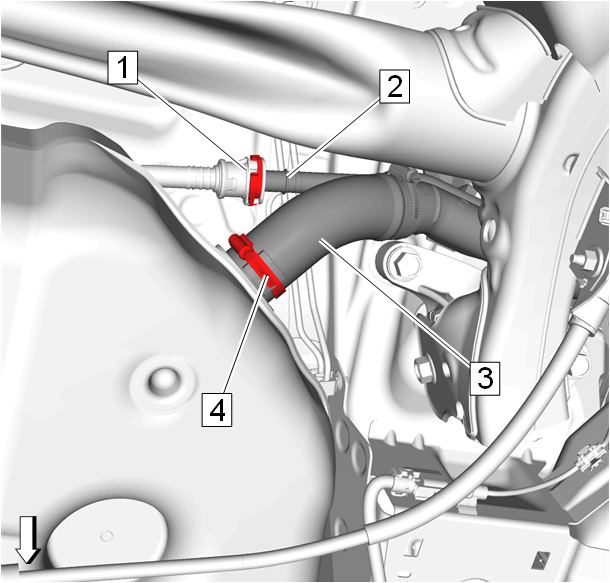

    Fig 3: Fuel Tank Filler Hose Clamp
    GM4704299Courtesy of GENERAL MOTORS COMPANY
  4. Fuel Tank Filler Hose (3) @ Fuel Tank» Connect
  5. Fuel Tank Filler Hose Clamp (4)» Tighten 3.5 N.m (31 lb in)
  6. Fuel Tank Filler Pipe Bracket Bolt (1)» Install and tighten 9 N.m (80 lb in)

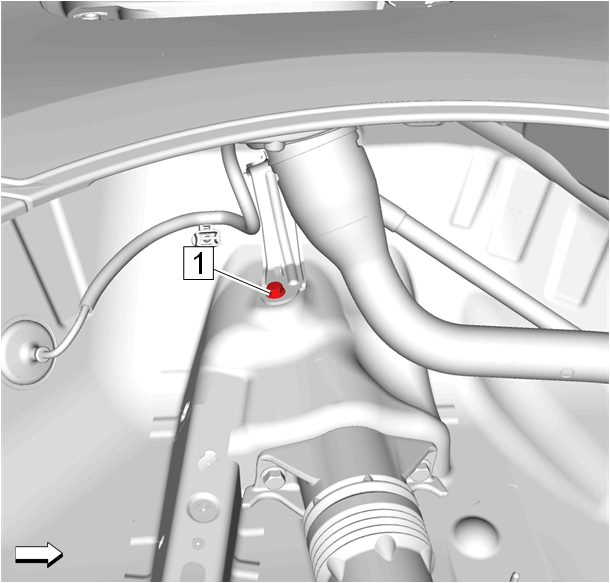

    Fig 4: Fuel Tank Filler Pipe Bracket Bolt
    GM4704298Courtesy of GENERAL MOTORS COMPANY
  7. Rear Wheelhouse Liner - Right Side» Install - Rear Wheelhouse Liner Replacement
  8. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
